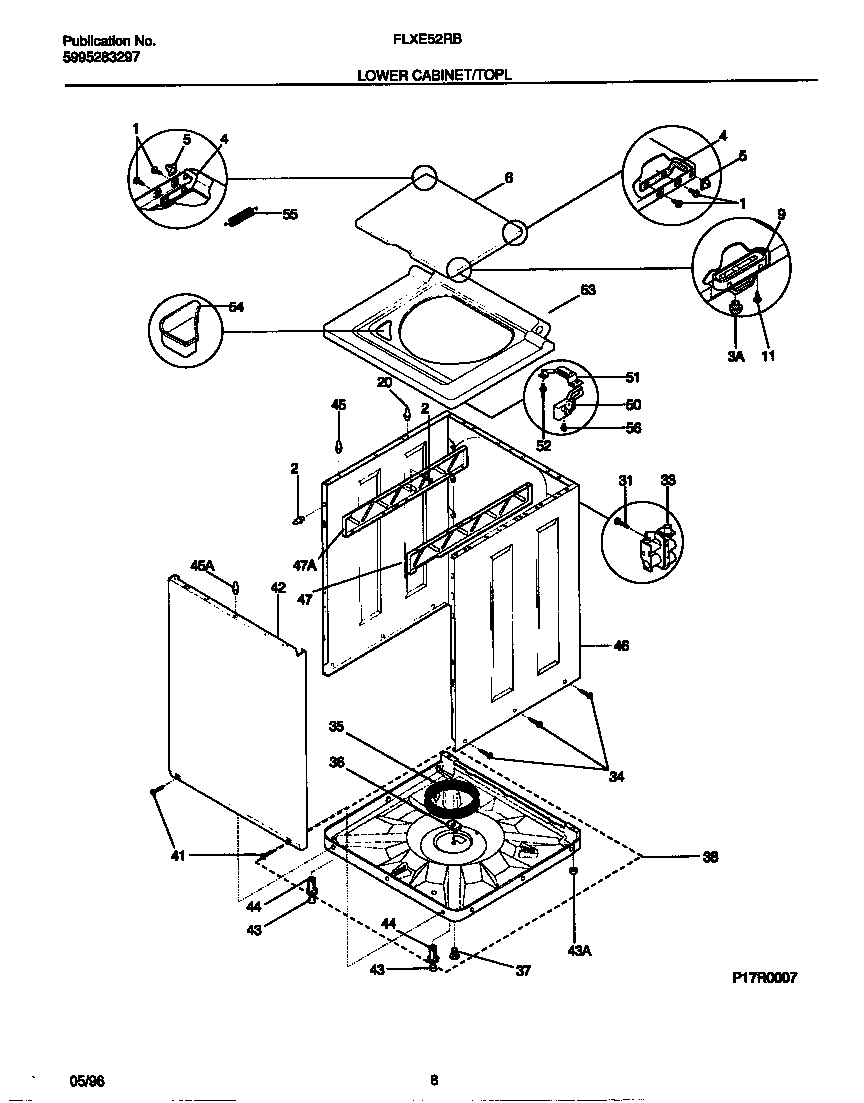

FLXE52RBT2 05 – LOWER CABINET/TOP

Products

Position	Product
*83805	131453000 Frigidaire Bushing
*83807	5303309503 Frigidaire Clip
*83806	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	SCREW
2	131168200 Frigidaire Dryer Screw
3	134075500 Frigidaire Bumper-LID
4	5304489657 Frigidaire Bar Hinge Kit
5	5303208743 Frigidaire Grommet
6	WCI 5303212873
9	131390000 Frigidaire Door Catch-Strike
11	3204368 Frigidaire Screw-Strike
20	3204374 Frigidaire Pin
31	131202300 Frigidaire Screw
33	134190200 Frigidaire Washer Water Valve
34	131205500 Frigidaire Screw
35	SNUBBER RING
36	SHIPPING BLOCK
37	WCI 131102900
38	WCI 5303311213
41	131302800 Frigidaire Drum Vane Screw
42	WCI 131104305
43	WCI 131422100
43	131422200 Frigidaire P-1 Self Level Leg Pad
44	134548800 Frigidaire Washer Leg Levelling
45	WCI 131346400
45	131346401 Frigidaire Pin
46	WCI 131452802
47	MARRIAGE BRACKET-LH
47	MARRIAGE BRACKET-RH
50	WCI 3205646
51	BRACKET-LID LOCK
52	RIVET (3)
53	WCI 131452520
54	WCI 3204394
55	134890500 Frigidaire Spring
56	131243800 Frigidaire Screw
