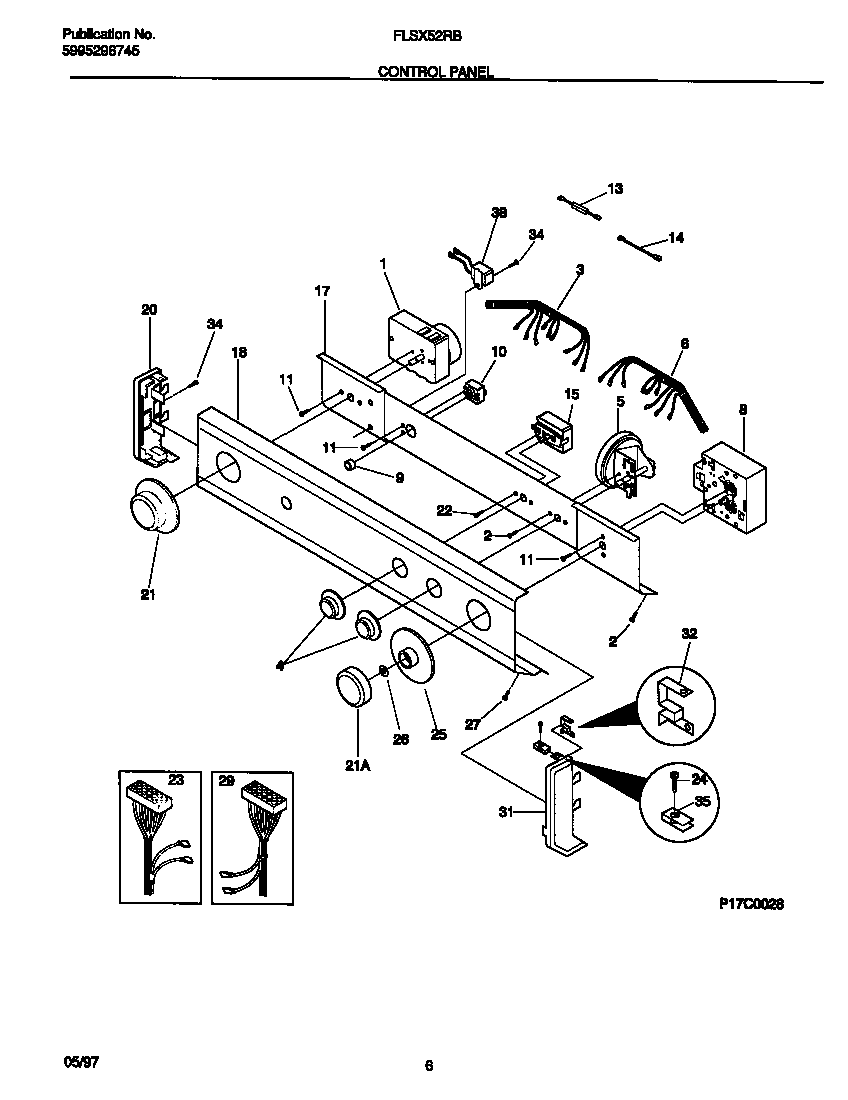

FLXE52RBT5 04 – CONTROL PANEL

Products

Position	Product
*69641	5303161300 Frigidaire Strap
1	131062300 Frigidaire Timer
2	131168200 Frigidaire Dryer Screw
3	WCI 131305700
4	WCI 131168102
5	WCI 131395600
6	WCI 131592700
8	WCI 131437400
9	WCI 131111504
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
15	WCI 131620800
17	WCI 131622902
18	WCI 131623200
20	WCI 131288102
21	KNOB-WASHER-ALMD
21	KNOB-DRYER-ALMD
22	WCI 3161259
23	WCI 131512600
24	134156200 Frigidaire Screw
25	WCI 131167702
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288212
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
