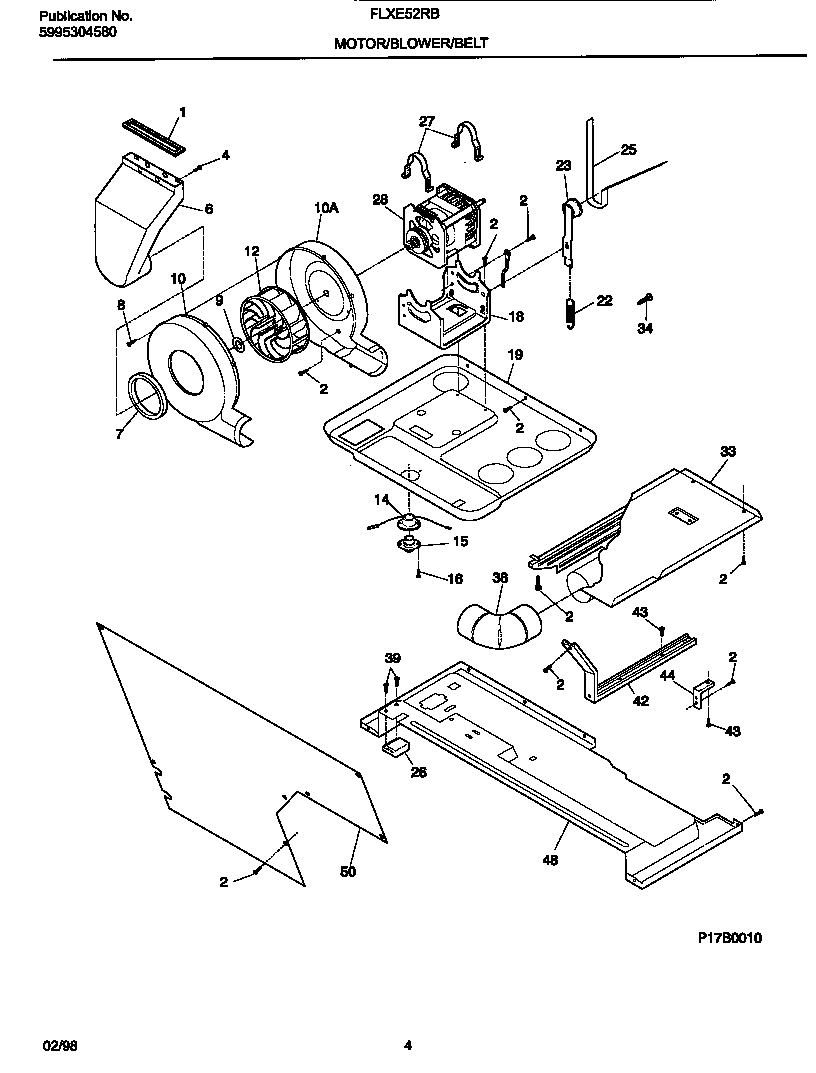

FLXE52RBT6 03 – MOTOR/BLOWER/BELT

FLXE52RBT6 03 – MOTOR/BLOWER/BELT

Written by

in

FLXE52RBT6 03 – MOTOR/BLOWER/BELT

Products

PositionProduct
*46920131453000 Frigidaire Bushing
1131295200 Frigidaire Seal
2131168200 Frigidaire Dryer Screw
4131362400 Frigidaire Fastener
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
95304488479 Frigidaire Washer Hose Clamp
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
10WCI 131575200
12BLOWER WHEEL
14WCI 5303206879
153204307 Frigidaire Dryer Thermostat Control, L135
16134178901 Frigidaire Screw
18WCI 131367101
19WCI 131363901
223205241 Frigidaire Idler Spring
23IDLER ARM ASSY
25BELT-DRYER LC
26BLOCK-SUPPORT
27WCI 131419800
285303937189 Frigidaire Drive Motor with Blower Housing
33SHIELD-ACCESS
34131205300 Frigidaire Screw
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
43SCREW (2)
443204326 Frigidaire Bracket Assembly
48137455500 Frigidaire Lower Pan Assembly
50SAFETY COVER
