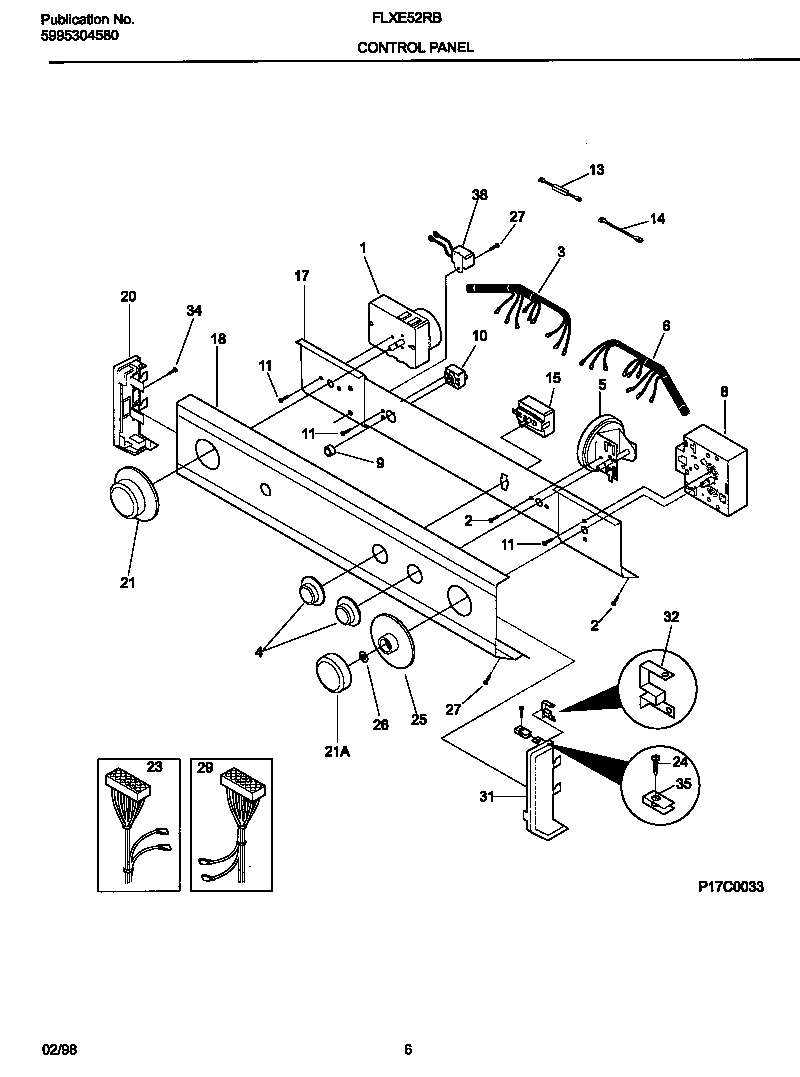

FLXE52RBT6 04 – CONTROL PANEL

FLXE52RBT6 04 – CONTROL PANEL

Written by

in

FLXE52RBT6 04 – CONTROL PANEL

Products

PositionProduct
*469215303161300 Frigidaire Strap
1131062300 Frigidaire Timer
2131168200 Frigidaire Dryer Screw
3WCI 131305700
4WCI 131168102
5WCI 131395600
6WCI 131592700
8WCI 131437400
9WCI 131111504
10WCI 131628900
11218359202 Frigidaire Refrigerator Screw
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
15WCI 131620800
17WCI 131622902
18WCI 131623200
20WCI 131288102
21KNOB-WASHER-ALMD
21KNOB-DRYER-ALMD
23WCI 131512600
24134156200 Frigidaire Screw
25WCI 131167702
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131654700
31WCI 131288212
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
