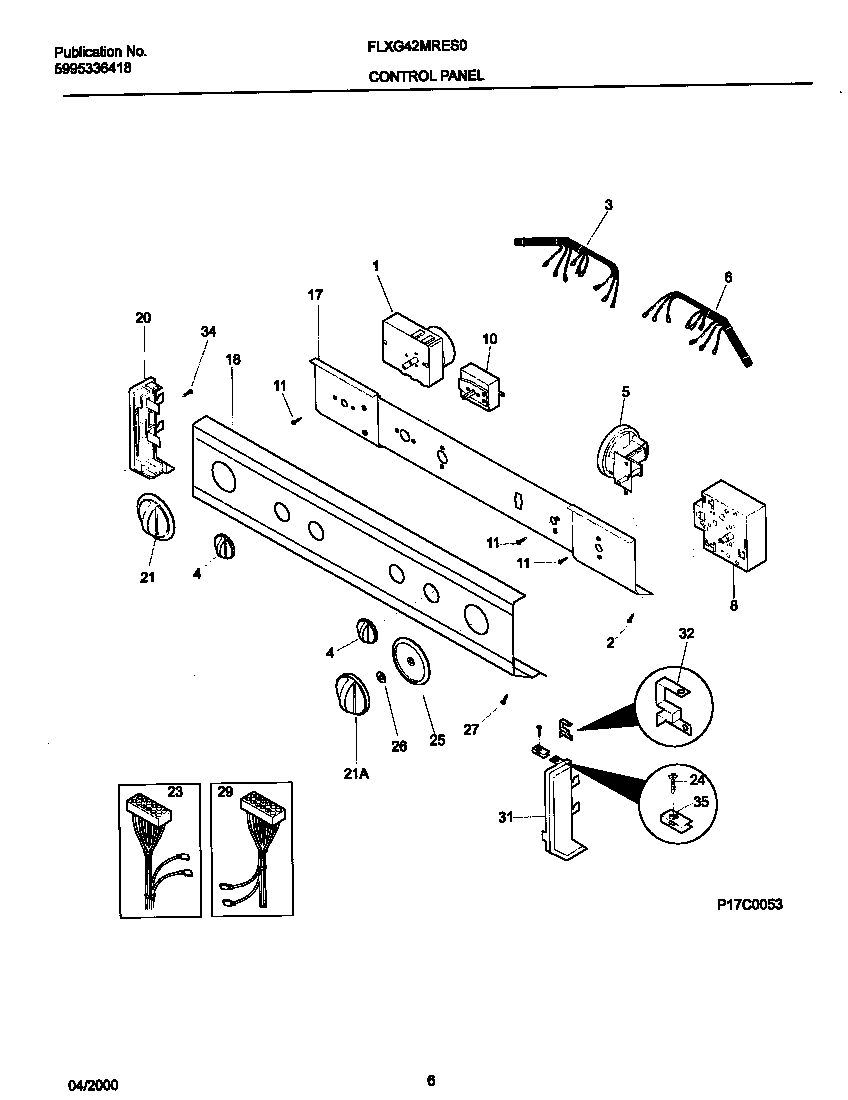

FLXG42MRES0 04 – P17C0053 CONTROL PANEL

Products

Position	Product
*47882	131209800 Frigidaire Clamp
*47883	5303161300 Frigidaire Strap
1	WCI 131225400
2	131168200 Frigidaire Dryer Screw
3	Wiring Harness,dryer control
4	131873401 Frigidaire Washer Control Knob
5	134422700 Frigidaire Switch
6	WCI 131694400
8	WCI 131437300
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
17	WCI 131712711
18	Panel,trimplate ,console front
20	WCI 131288101
21	WCI 131167601
21	131873304 Frigidaire Dryer Timer Knob White
23	WCI 131848700
24	134156200 Frigidaire Screw
25	WCI 131167701
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131778700
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
