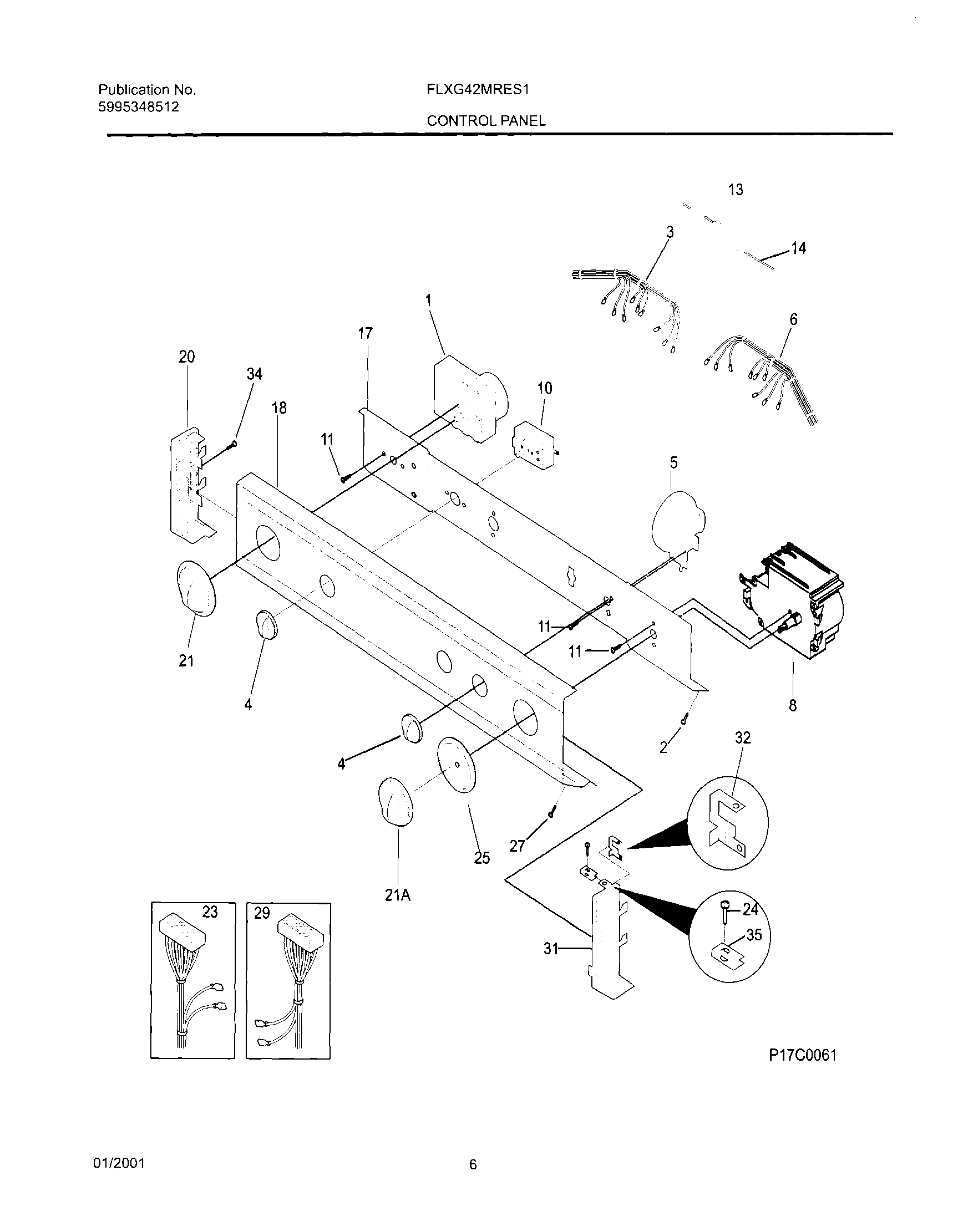

FLXG42MRES1 07 – CONTROL PANEL

FLXG42MRES1 07 – CONTROL PANEL

Written by

in

FLXG42MRES1 07 – CONTROL PANEL

Products

PositionProduct
NI131209800 Frigidaire Clamp
NI5303161300 Frigidaire Strap
1WCI 131225400
2131168200 Frigidaire Dryer Screw
3Wiring Harness,dryer control
4131873401 Frigidaire Washer Control Knob
5134422700 Frigidaire Switch
6WCI 131987900
8131964100 Frigidaire P1-Timer Elec H Mallor
10134399700 Frigidaire Washer Switch
11218359202 Frigidaire Refrigerator Screw
17WCI 131975600
18Panel,trimplate ,console front
20WCI 131288101
21131873304 Frigidaire Dryer Timer Knob White
21WCI 131977201
23WCI 131848700
24134156200 Frigidaire Screw
25WCI 131976801
27SCREW (2)
29WCI 131778800
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
