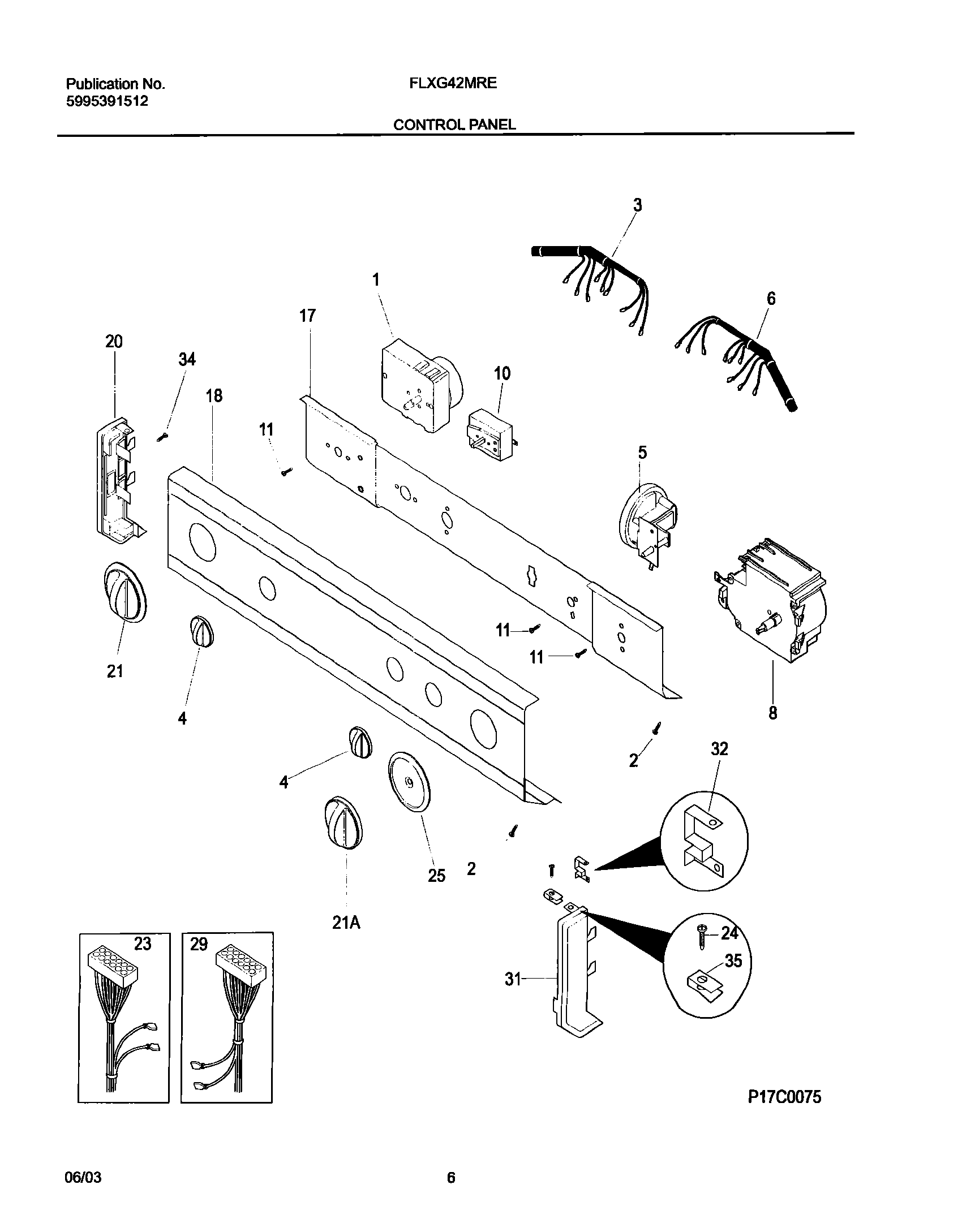

FLXG42MRES4 07 – CONTROL PANEL

Products

Position	Product
NI	131209800 Frigidaire Clamp
NI	5303161300 Frigidaire Strap
1	WCI 131225400
2	131168200 Frigidaire Dryer Screw
3	Wiring Harness,dryer control
4	131873401 Frigidaire Washer Control Knob
5	134422700 Frigidaire Switch
6	Wiring Harness,washer control ,w/o temp switch
8	131964100 Frigidaire P1-Timer Elec H Mallor
10	134399700 Frigidaire Washer Switch
11	218359202 Frigidaire Refrigerator Screw
17	WCI 134135100
18	Panel,trimplate ,console front
20	WCI 131288101
21	131873304 Frigidaire Dryer Timer Knob White
21A	WCI 131977201
23	WCI 131848700
24	134156200 Frigidaire Screw
25	WCI 131976801
27	SCREW (2)
29	WCI 134113400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
