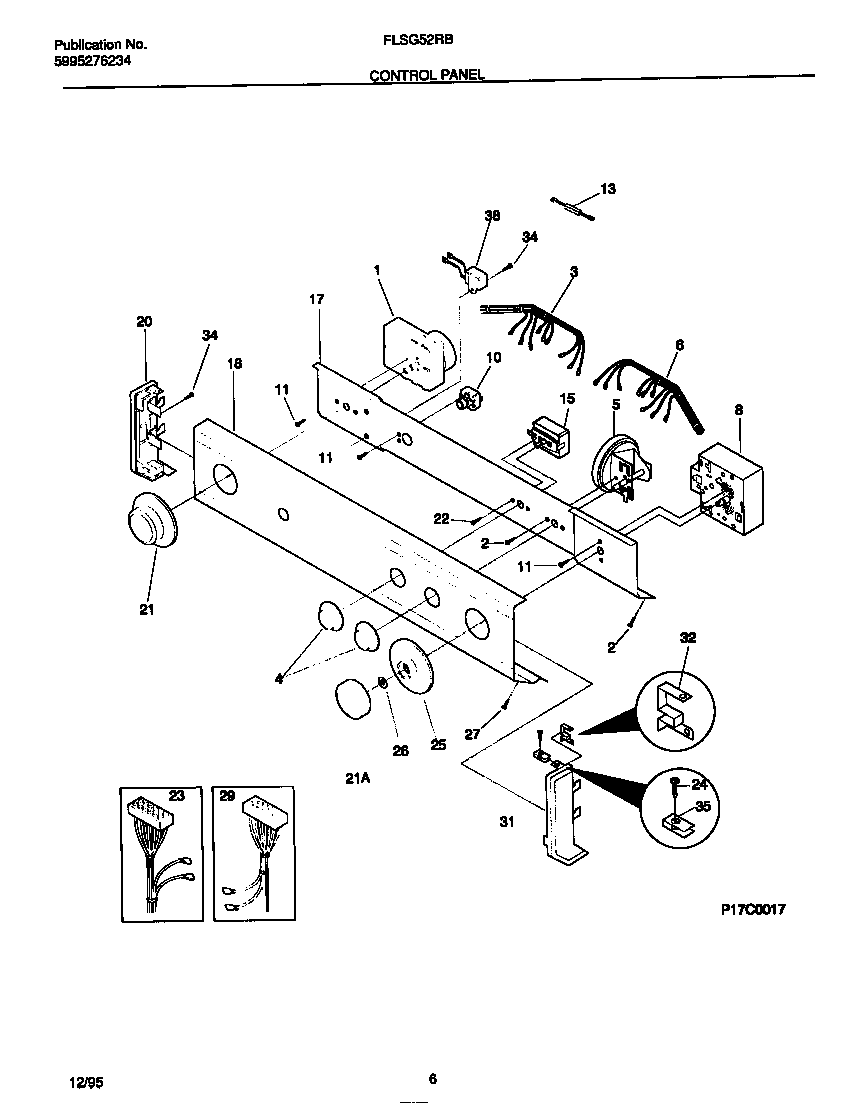

FLXG52RBS1 04 – CONTROL PANEL

Products

Position	Product
*45329	131209800 Frigidaire Clamp
*45330	5303161300 Frigidaire Strap
*45331	SPACER PAD-CONTROL PANEL BRACKET (2)
*45328	CLIP
*45332	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	WCI 131062400
2	131168200 Frigidaire Dryer Screw
3	WCI 131343300
4	131873401 Frigidaire Washer Control Knob
5	WCI 131395600
6	WCI 131446300
8	WCI 131437400
10	WCI 5303211158
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
15	SWITCH-TEMPERATURE
17	BRACKET-CONTROLS
18	WCI 131316200
20	WCI 131288101
21	131873304 Frigidaire Dryer Timer Knob White
21	WCI 131167601
22	WCI 3161259
23	WCI 131249700
24	134156200 Frigidaire Screw
25	WCI 131167701
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131490400
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
