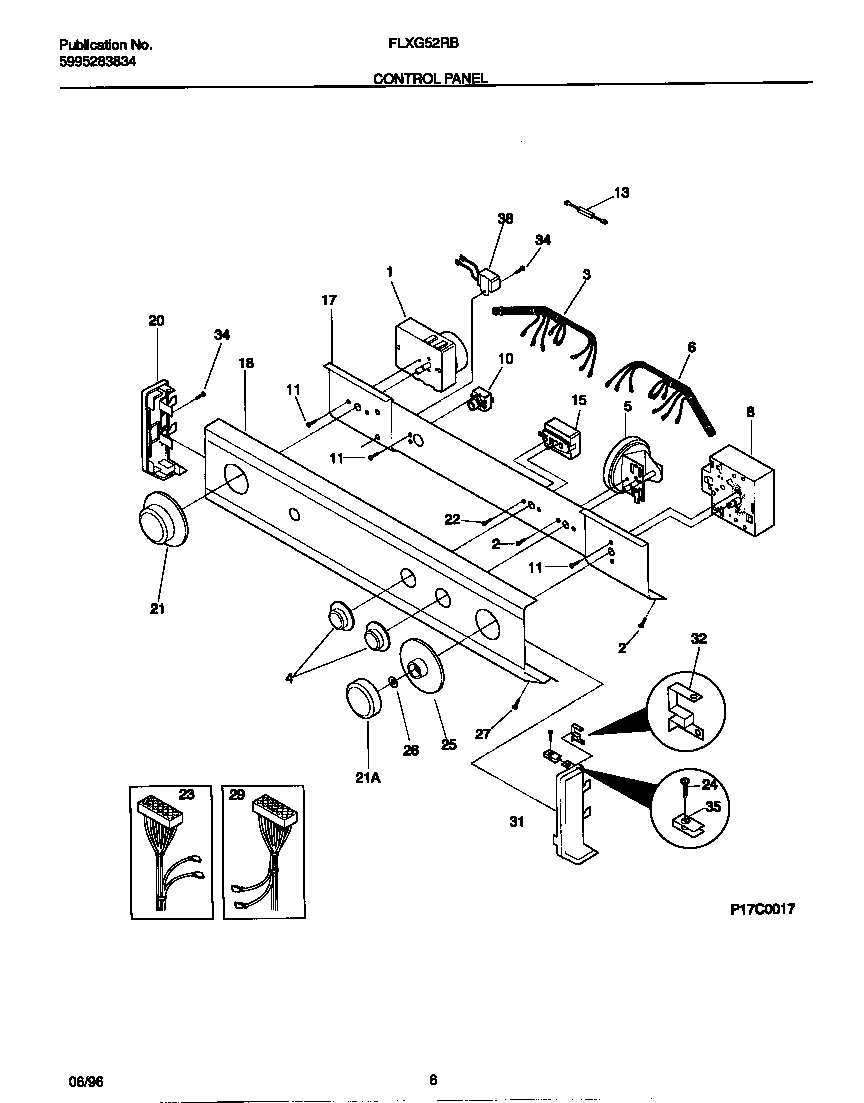

FLXG52RBS2 04 – CONTROL PANEL

Products

PositionProduct
*29845131209800 Frigidaire Clamp
*298475303303590 Frigidaire Dryer 4.0" Cable Tie
*298465303161300 Frigidaire Strap
1WCI 131062400
2131168200 Frigidaire Dryer Screw
3WCI 131343300
4131873401 Frigidaire Washer Control Knob
5WCI 131395600
6WCI 131446300
8WCI 131437400
10WCI 5303211158
11218359202 Frigidaire Refrigerator Screw
13RESISTOR, 3.0K
15SWITCH-TEMPERATURE
17BRACKET-CONTROLS
18WCI 131316200
20WCI 131288101
21WCI 131167601
21131873304 Frigidaire Dryer Timer Knob White
22WCI 3161259
23WCI 131491500
24134156200 Frigidaire Screw
25WCI 131167701
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131520800
31WCI 131288211
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
38WCI 5303286537
