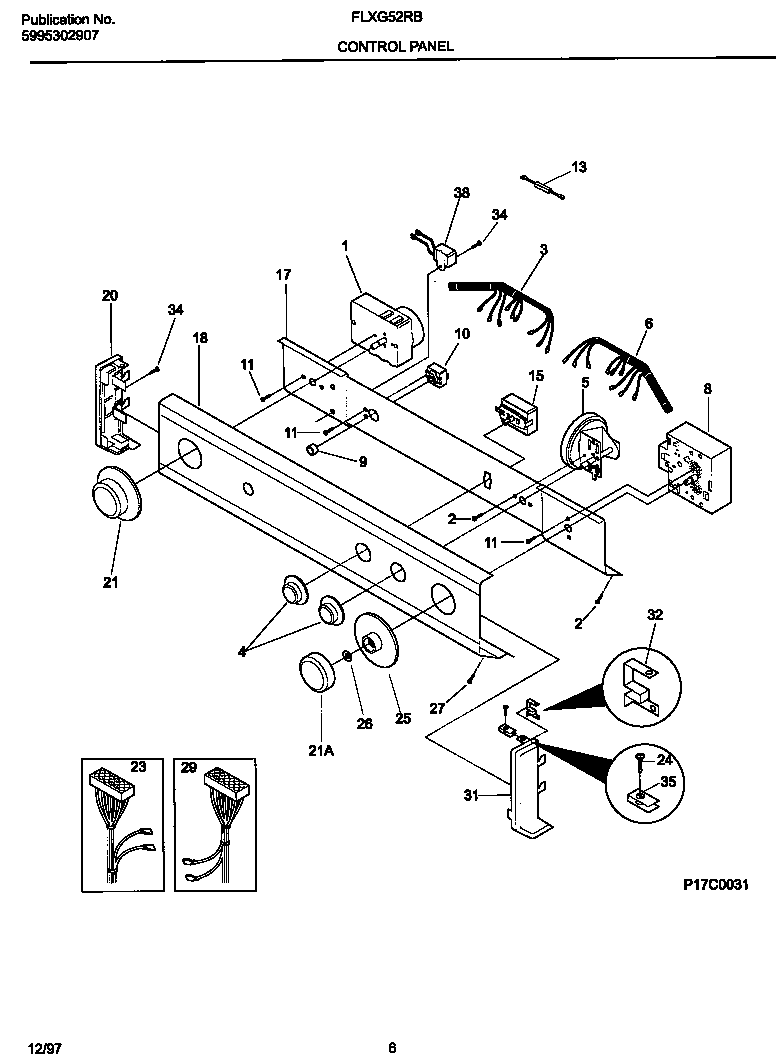

FLXG52RBS5 04 – CONTROL PANEL

Products

Position	Product
*22364	131209800 Frigidaire Clamp
*22365	5303161300 Frigidaire Strap
1	WCI 131062400
2	131168200 Frigidaire Dryer Screw
3	WCI 131343300
4	131873401 Frigidaire Washer Control Knob
5	WCI 131395600
6	WCI 131592700
8	WCI 131437400
9	WCI 131111501
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
15	WCI 131620800
17	WCI 131622902
18	WCI 131623000
20	WCI 131288101
21	WCI 131167601
21	131873304 Frigidaire Dryer Timer Knob White
23	WCI 131491500
24	134156200 Frigidaire Screw
25	WCI 131167701
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131654700
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
