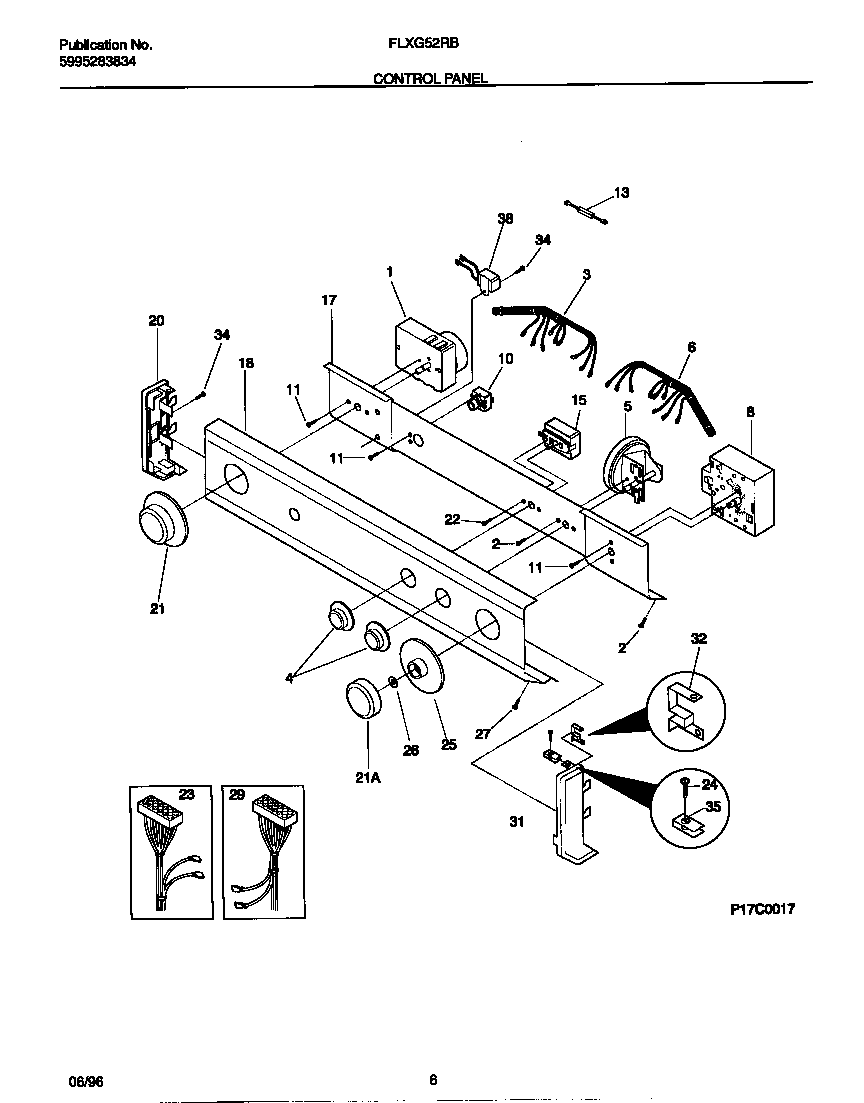

FLXG52RBT2 04 – CONTROL PANEL

Products

Position	Product
*29845	131209800 Frigidaire Clamp
*29846	5303161300 Frigidaire Strap
*29847	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	WCI 131062400
2	131168200 Frigidaire Dryer Screw
3	WCI 131343300
4	WCI 131168102
5	WCI 131395600
6	WCI 131446300
8	WCI 131437400
10	START-SWITCH-ALMOND
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
15	SWITCH-TEMPERATURE
17	BRACKET-CONTROLS
18	WCI 131316700
20	WCI 131288102
21	KNOB-DRYER-ALMD
21	KNOB-WASHER-ALMD
22	WCI 3161259
23	WCI 131491500
24	134156200 Frigidaire Screw
25	WCI 131167702
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288212
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
