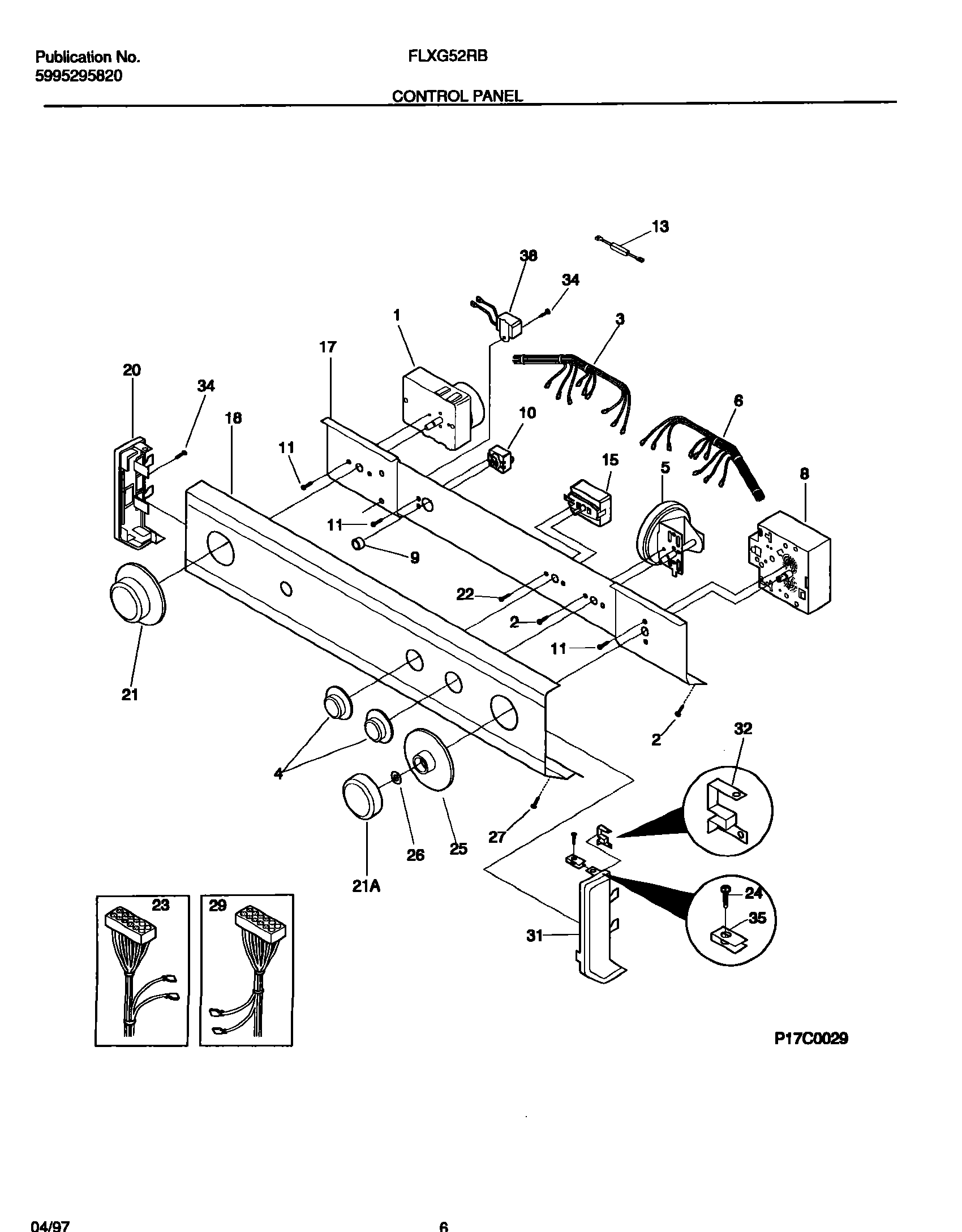

FLXG52RBT3 07 – CONTROL PANEL

Products

Position	Product
NI	5303161300 Frigidaire Strap
NI	131209800 Frigidaire Clamp
NI	CLIP
1	WCI 131062400
2	131168200 Frigidaire Dryer Screw
3	WCI 131343300
4	WCI 131168102
5	WCI 131395600
6	WCI 131592700
8	WCI 131437400
9	BUTTON-START SWITCH,ALMOND
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
15	WCI 131620800
17	WCI 131622902
18	WCI 131623200
20	WCI 131288102
21	KNOB-DRYER-ALMD
21A	KNOB-WASHER-ALMD
22	WCI 3161259
23	WCI 131491500
24	134156200 Frigidaire Screw
25	WCI 131167702
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131520800
31	WCI 131288212
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
