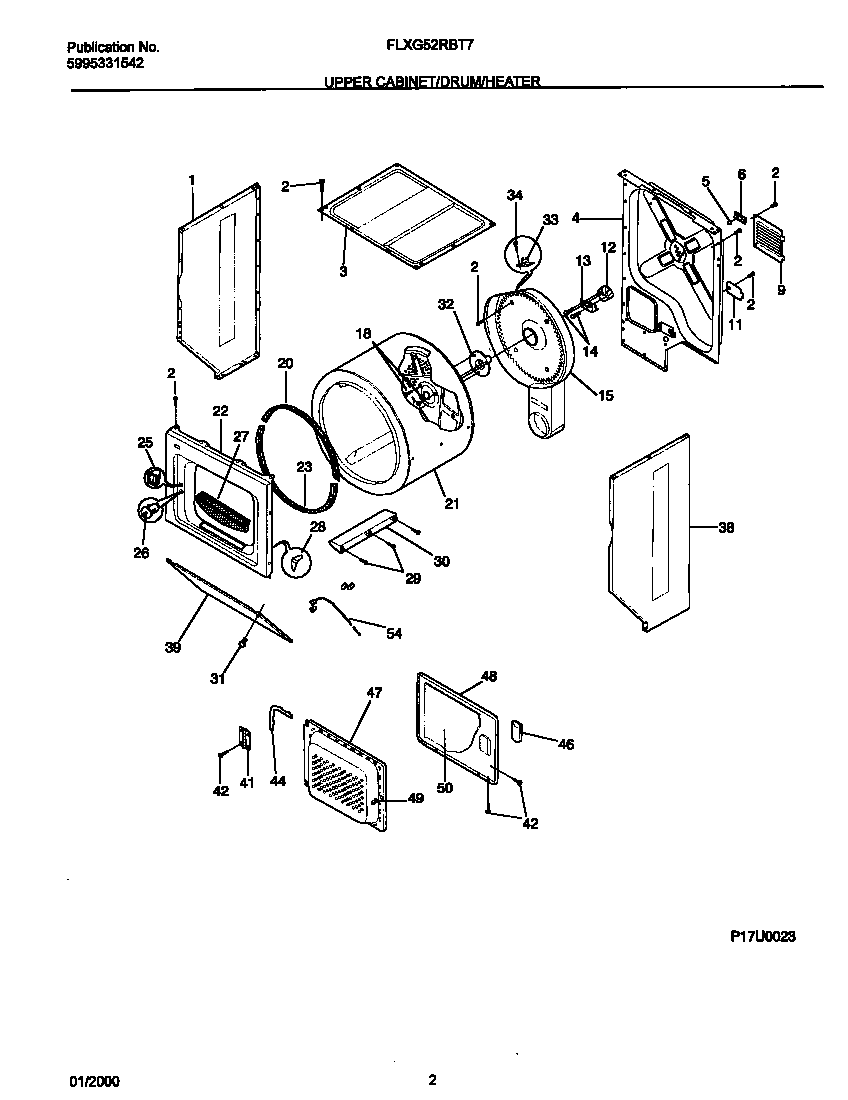

FLXG52RBT7 02 – CABINET/DRUM/HEATER

Products

Position	Product
1	WCI 131084701
3	131883301 Frigidaire Panel
4	WCI 131752302
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	COVER-TERM BLOCK
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER HOUSING & DUCT
18	131168200 Frigidaire Dryer Screw
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	WCI 131427863
22	WCI 131636203
23	5303283286 Frigidaire Drum Felt Seal Lower Front
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	SWITCH-DOOR
27	LINT FILTER
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	131202300 Frigidaire Screw
32	131777700 Frigidaire Dryer Bearing Drum
33	5304406099 Frigidaire Safety Thermostat
34	131243700 Frigidaire Screw
38	WCI 131084801
39	WCI 131084403
41	134222900 Frigidaire Dryer Door Hinge
42	134156200 Frigidaire Screw
44	137551901 Frigidaire Gasket
46	WCI 131789401
47	WCI 131579104
48	WCI 131789304
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 131498900
