Aparts

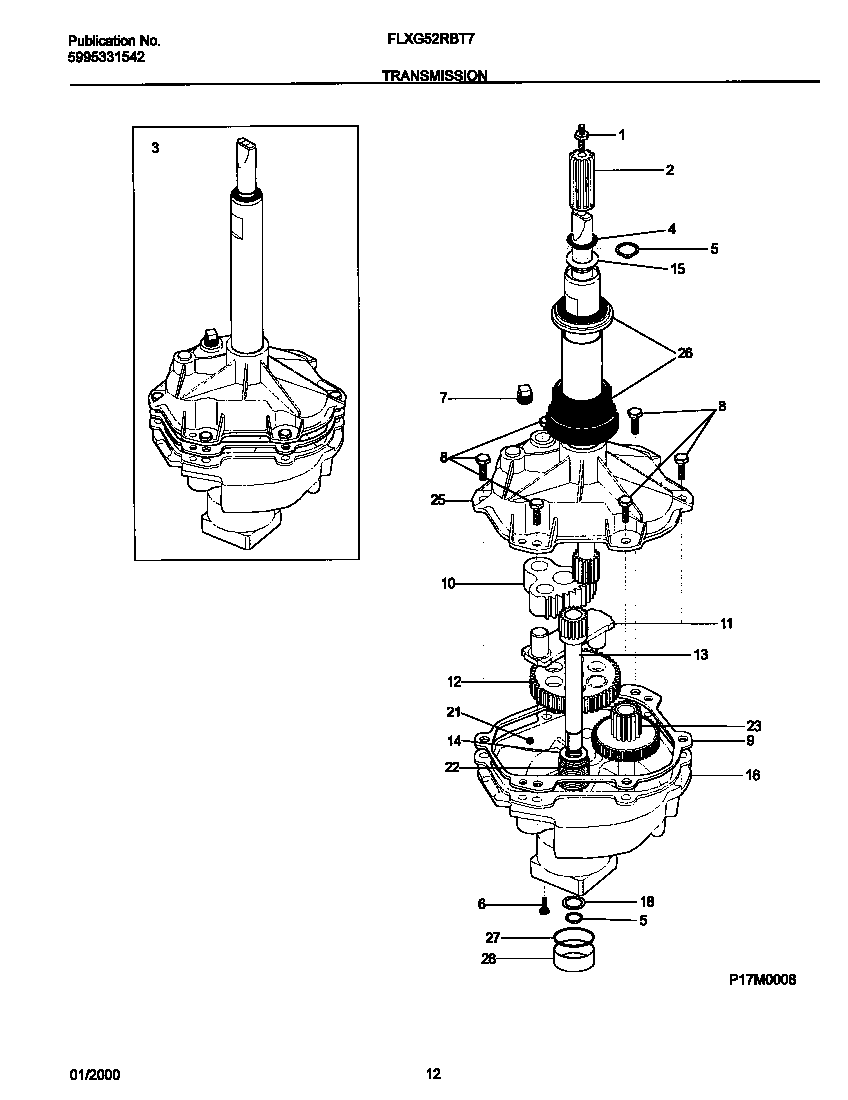

FLXG52RBT7 07 – TRANSMISSION

FLXG52RBT7 07 – TRANSMISSION

Written by

in

FLXG52RBT7 07 – TRANSMISSION

Products

PositionProduct
*50287WCI 131661200
1WCI 131206800
2134418700 Frigidaire Agitator Drive Hub
3134735700 Frigidaire Transmission Assembly
45303161307 Frigidaire Dryer Seal Assembly
5WCI 5303161223
6134197900 Frigidaire Screw
7WCI 5303161224
8WCI 5308002804
9GASKET
10WCI 5308011268
11WCI 131632701
12WCI 5308015496
13WCI 5308014905
14WCI 5303161226
15THRUST WASHER
16WCI 131557800
18WCI 5308002475
21OIL-TRANSMISSION (1 QT)
22WCI 131417600
23WCI 5303161175
25WCI 131586600
26SEAL-TUB
27WCI 131784300
28131784400 Frigidaire Spacer Transmission Bearing
