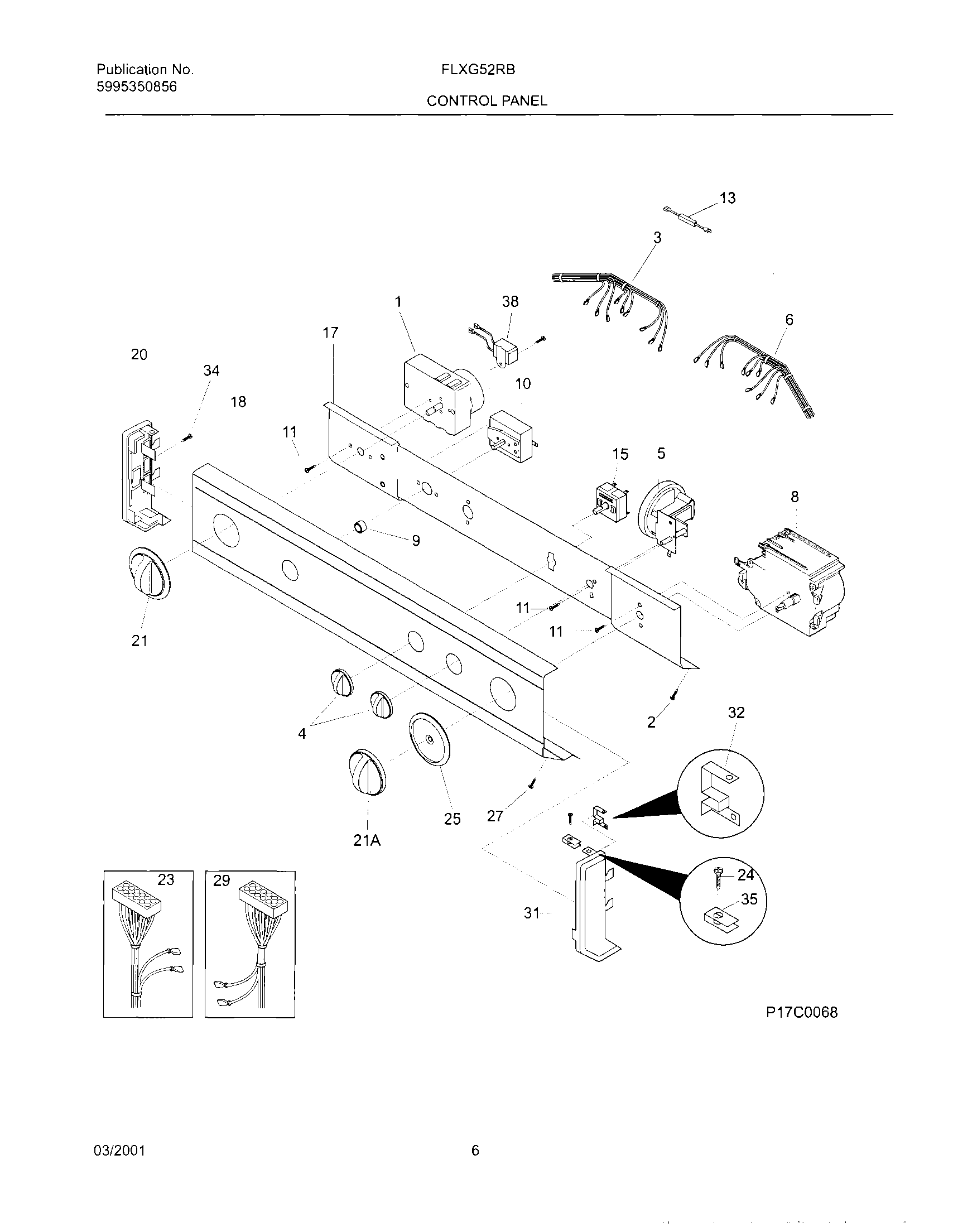

FLXG52RBT8 07 – CONTROL PANEL

Products

Position	Product
NI	131209800 Frigidaire Clamp
NI	5303161300 Frigidaire Strap
1	WCI 131062400
2	131168200 Frigidaire Dryer Screw
3	WCI 131343300
4	WCI 131873402
5	134422700 Frigidaire Switch
6	WCI 131998700
8	WCI 131773900
9	WCI 131111504
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
15	WCI 131620800
17	WCI 131983400
18	WCI 131623200
20	WCI 131288102
21	WCI 131873302
21	WCI 131977202
23	WCI 131848800
24	134156200 Frigidaire Screw
25	WCI 131976802
27	131892100 Frigidaire Screw
29	WCI 131778800
31	WCI 131288212
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
