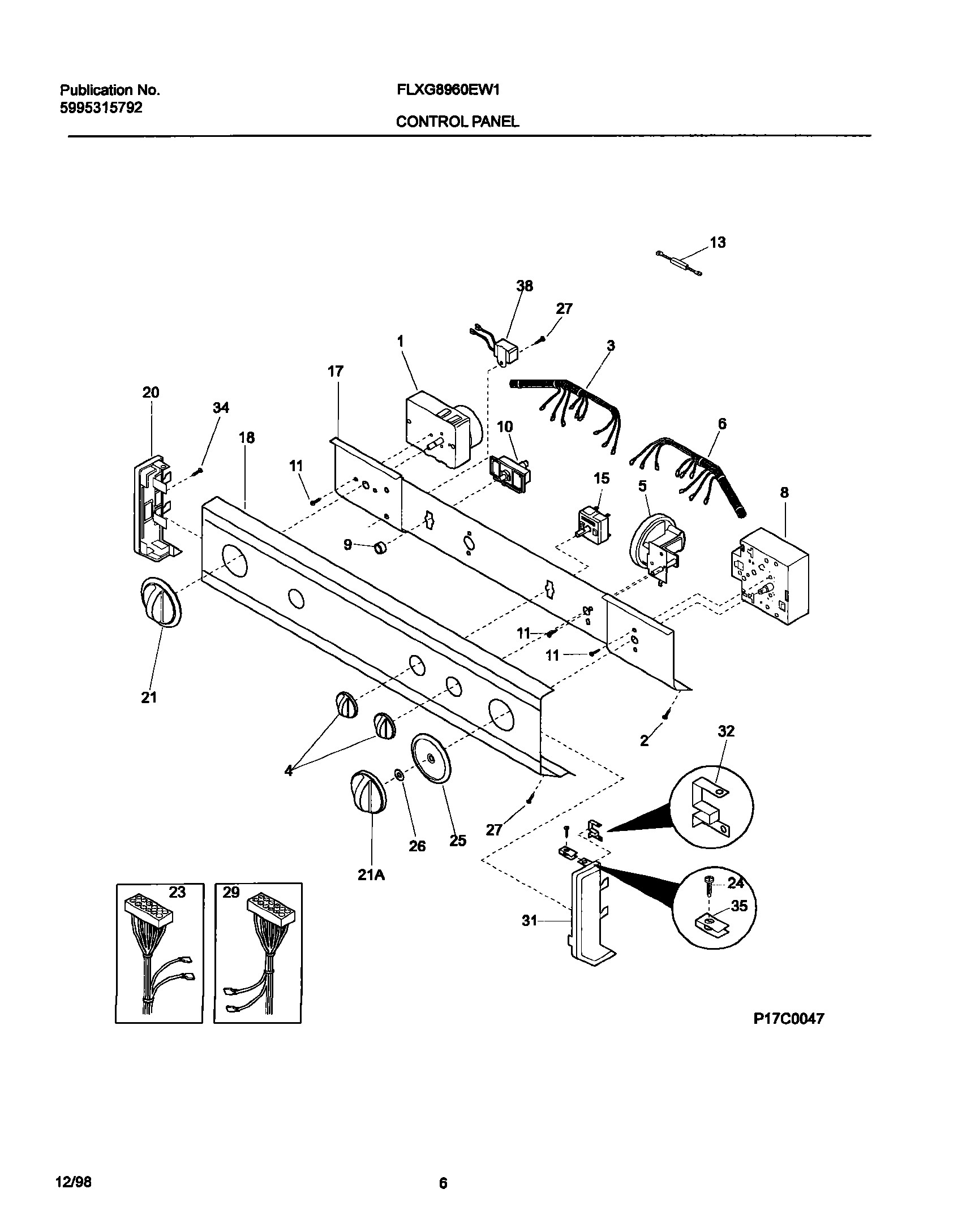

FLXG8960EW1 07 – CONTROL PANEL

Products

Position	Product
NI	131209800 Frigidaire Clamp
NI	5303161300 Frigidaire Strap
1	WCI 131062400
2	131168200 Frigidaire Dryer Screw
3	WCI 131343300
4	131873401 Frigidaire Washer Control Knob
5	134422700 Frigidaire Switch
6	WCI 131668500
8	WCI 131437400
9	WCI 131111501
10	WCI 131628900
11	218359202 Frigidaire Refrigerator Screw
13	RESISTOR, 3.0K
15	WCI 131620800
17	WCI 131712602
18	WCI 131623000
20	WCI 131288101
21A	WCI 131167601
21	131873304 Frigidaire Dryer Timer Knob White
23	WCI 131666100
24	134156200 Frigidaire Screw
25	WCI 131167701
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131778800
31	WCI 131288211
32	WCI 3204357
34	131243700 Frigidaire Screw
35	CLIP (8)
38	WCI 5303286537
