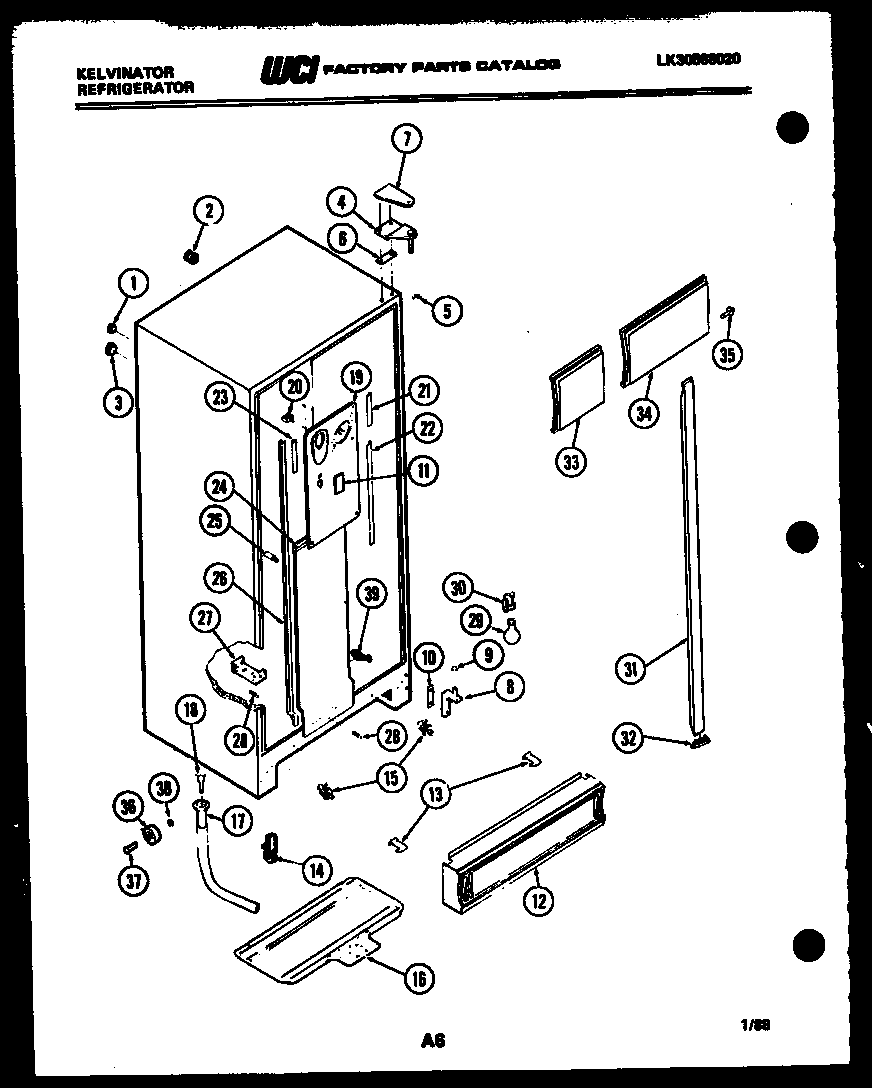

FMK220EN0W 04 – CABINET PARTS

Products

Position	Product
*37733	BUTTON, LINER
*37732	BUTTON, PLUG, LINER (2)
1	WCI G174734
2	TUBE, INSULATION (2)
3	WCI G174733
4C	TAPPING PLATE (2)
4B	241710601 Frigidaire Refrigerator Screw
4	HINGE-TOP RS
4A	WCI G183716
5	WASHER, NYLON
6	WCI G183861
7	COVER HINGE, WHITE
8B	WCI G141673
8	BRACKET-LOWER HINGE
8A	SCREW – 1/4 X 1 (2)
9	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
10A	WCI G142361
10	SHIM, HINGE
10B	NUT, SPEED (2)
11	WCI G165416-07
12	WCI 3015423
13	CLIP, GRILLE
14A	SCREW, MTG (2) (NON-ILLUSTRATED)
14	ROLLER ASSY (2)
15	WCI G149782
16	WCI G171125
17	241957901 Frigidaire Refrigerator Tube-Drain
18	WCI G171193
19	WCI G169481-01
19A	NUT, ORIFICE (2)
20	WCI G163669
21	WCI G165233
22	WCI G174234-02
23	WCI G174234-01
24	WCI G169477-03
25	WCI G169471
26	WCI G188000-03
27B	WCI G184851
27	WCI G158022
27A	WASHER
28	5304455650 Frigidaire Refrigerator Screw
29	218906802 Frigidaire Light Lamp Socket
30	316538904 Frigidaire Oven Lamp Light
31A	WCI G169297
31	WCI G164643
31A	WCI G169100
32	MULLION TRIM-WHITE
33	LIGHT SHIELD – FREEZER
34	WCI 3015082
34	WCI 3016878
35	WCI G165177
36	ROLLER (2)
37	WCI G162809
38	NUT, DAMPER MOUNTING
39	WCI G164912-03
