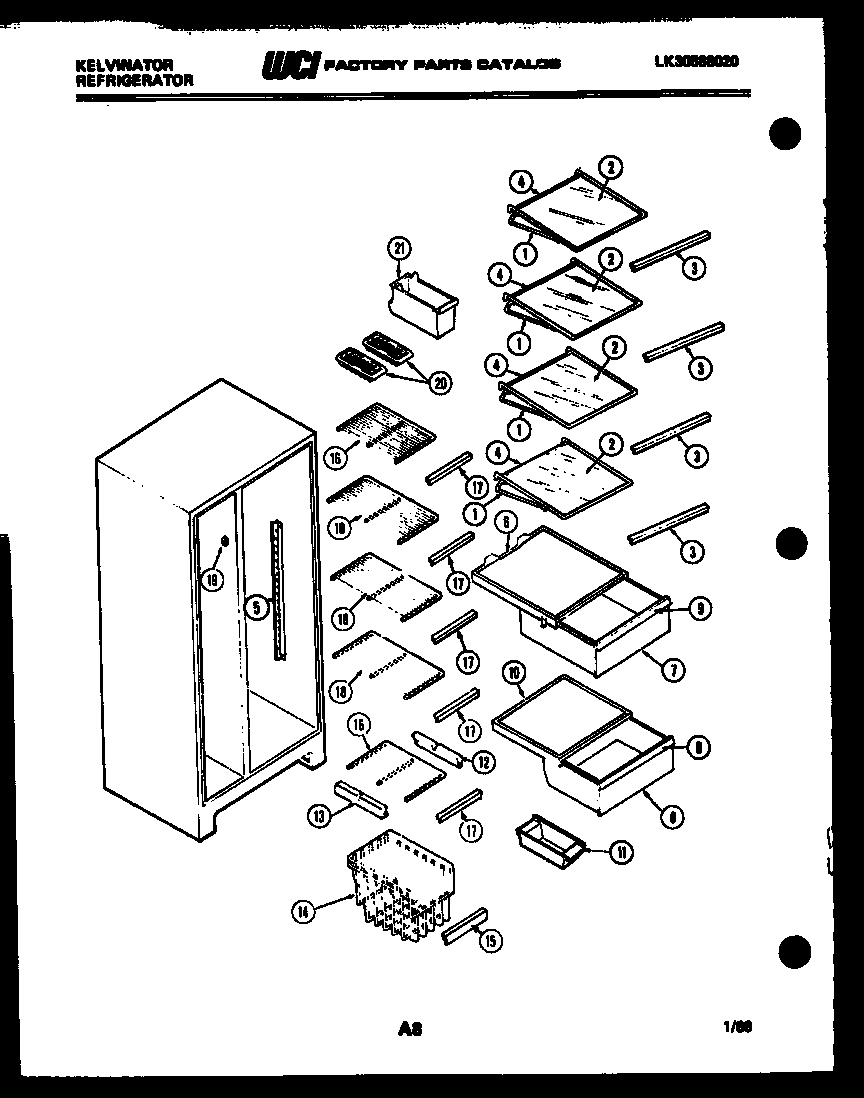

FMK220EN2D 05 – SHELF PARTS

Products

Position	Product
1	WCI G171608-01
2	WCI 3016880
3	TRIM-SHELF-FRONT (4)
4	WCI G172436-16
5A	5304455852 Frigidaire Refrigerator Screw
5	CHANNEL-RS & LS
6A	GASKET-COVER UPR (2) (NON-ILLUSTRATED)
6	COVER-PAN UPPER
7	PAN-STORAGE UPPER
8	PAN-STORAGE LOWER
9	TRIM-PAN LOWER
10	COVER-PAN-LOWER
11	WCI G173948-30
12	HANGER-BASKET RS
13	HANGER-BASKET LS
14	WCI G171611
15	WCI 3015079
15A	SCREW-TRIM MTG (2) (NON-ILLUSTRATED)
16	SHELF-FREEZER (2)
17	WCI 3016879
18	SHELF-FREEZER CTR (3)
19	5304509705 Frigidaire Refrigerator Grommet
20	215667501 Frigidaire Refrigerator Ice Tray Primary
21	WCI G161015-17
