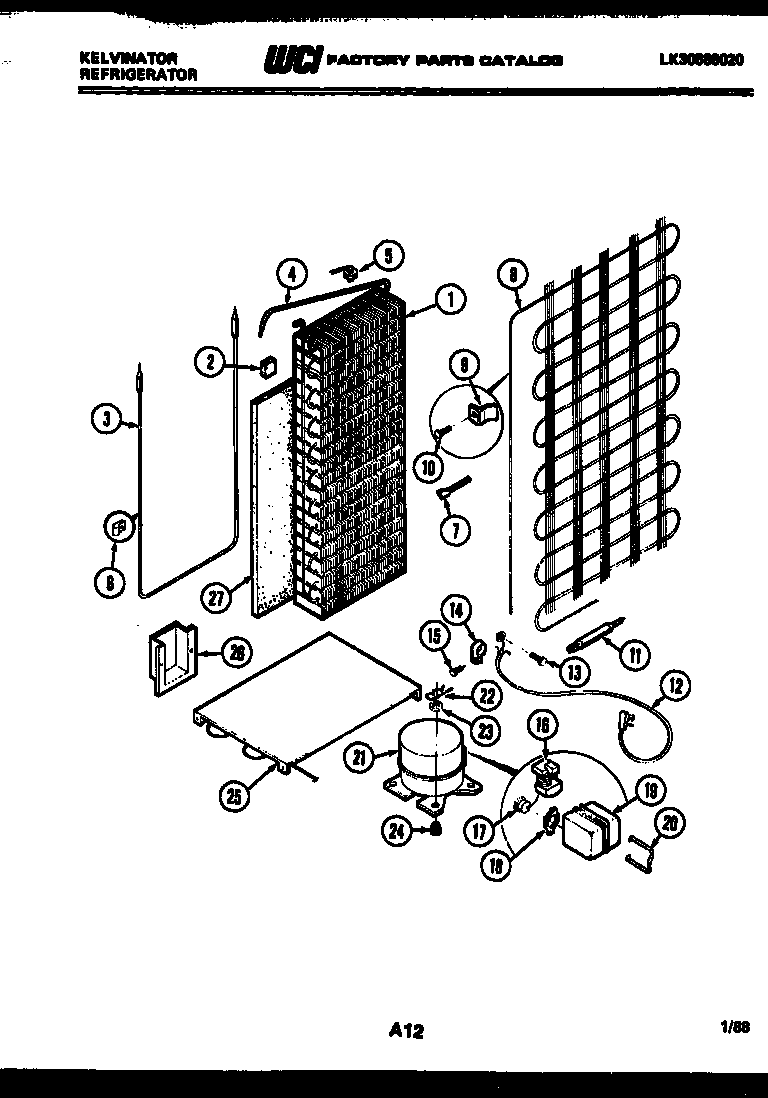

FMK220EN2D 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*37845	WIRING HARNESS-COMPR & LIGHTS
*37847	WCI G189379
1	WCI G190222
2	WCI G169493
3	WCI G190223
4	WCI G189609
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI G167363
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	WCI 3007521
9	BRACKET, COND. MTG (4)
10	5308000039 Frigidaire Refrigerator Screw
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	CORD, SERVICE
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	WCI G182225-04
17	WCI G188727
18	RETAINER, OVERLOAD
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21	COMPRESSOR
22	CLIP, COMPRESSOR MOUNTING (4)
23	WASHER, COMPRESSOR MOUNTING (4)
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25A	WCI G171111
25B	BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25C	218843801 Frigidaire Refrigerator Screw
25	WCI G188596
26	WCI G183584
27	WCI G169641
