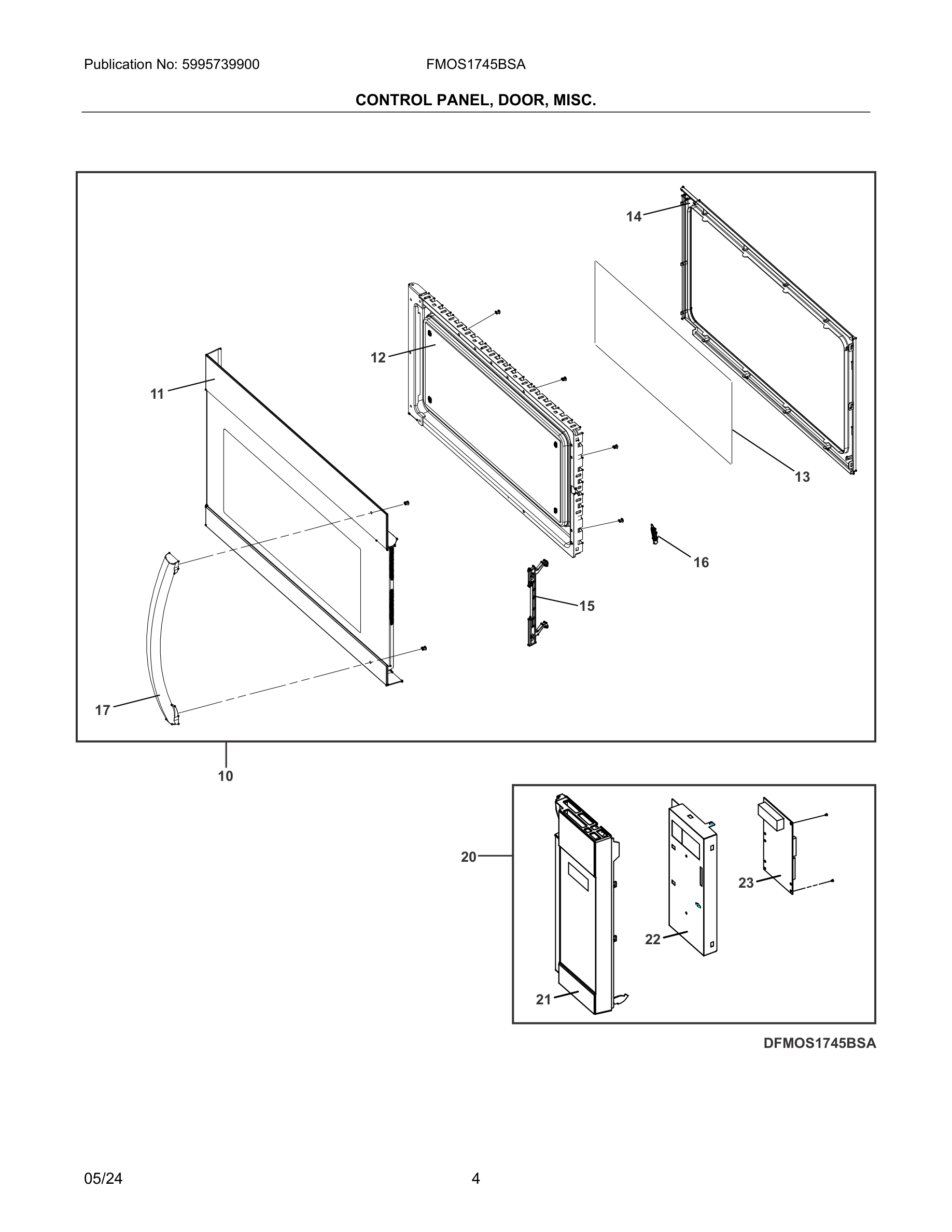

FMOS1745BSA 05 – CONTROL PANEL, DOOR, MISC.

FMOS1745BSA 05 – CONTROL PANEL, DOOR, MISC.

Written by

in

FMOS1745BSA 05 – CONTROL PANEL, DOOR, MISC.

Products

PositionProduct
10Door Assembly, complete, stainless, w/handle
11Door Panel, assembly, stainless, outer
12Panel, inner door, black
13Screen, door, internal
14Gasket, door, inner
15Latch, door
165304521953 Frigidaire Microwave Spring Assembly
17Handle, door, stainless
20#5304536592 Frigidaire Control Panel
21Control Panel, assembly, stainless, front
22Shield, control
23#User Interface, control board
