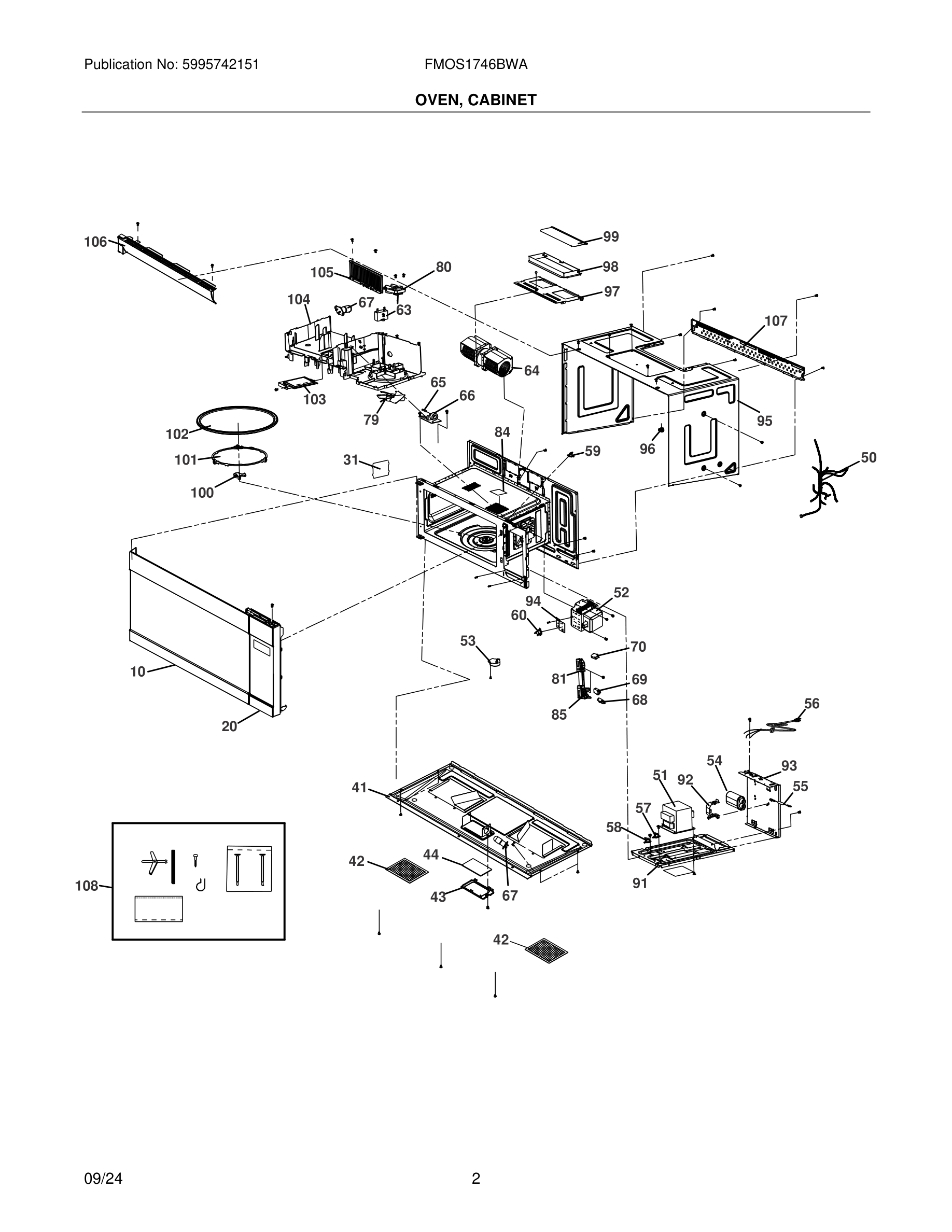

FMOS1746BWA 03 – OVEN, CABINET

FMOS1746BWA 03 – OVEN, CABINET

Written by

in

FMOS1746BWA 03 – OVEN, CABINET

Products

PositionProduct
10Door Assembly, complete, white
20#Control Panel, assembly, white, complete
315304523276 Frigidaire Microwave Waveguide Cover
415304509417 Frigidaire Microwave Base
425304517871 Frigidaire Replacement Grease Filters
435304509441 Frigidaire Microwave Frame
445304509443 Frigidaire Microwave Lens
50#Harness, wiring, main
51#5304509476 Frigidaire Microwave Transformer
52#MAGNETRON
53#MOTOR, TURNTABLE
54#5304523278 Frigidaire Microwave Capacitor
55#5304515185 Frigidaire Microwave Diode
56#POWER CORD, ELECTRIC SRVICE
57#5304513462 Frigidaire Microwave Thermostat
58#5304513463 Frigidaire Microwave Thermostat
59#5304515178 Frigidaire Microwave Thermostat
60#5304513461 Frigidaire Microwave Thermostat
63#CAPACITOR, START
64#Blower Assembly, venting
65#5304509451 Frigidaire Microwave Fuse
66#5304525109 Frigidaire Microwave Filter
67#5304519338 Frigidaire Microwave Lamp Assembly
69#5304520021 Frigidaire Microwave Microswitch
70#SWITCH
795304519350 Frigidaire Microwave Blade
80#MOTOR, FAN
81Bracket, interlock
84Seal, lamp, mylar film
855304509458 Frigidaire Microwave Lever Assembly
91Plate, HV transformer
925304509477 Frigidaire Retainer
93DEFLECTOR, AIR GUIDE
94#5304515183 Frigidaire Microwave Thermostat
955304524000 Frigidaire Microwave Wrapper
965304509436 Frigidaire Microwave Mounting Nut Kit
975304513481 Frigidaire Microwave Cover
985304509485 Frigidaire Microwave Vent Damper
995304509486 Frigidaire Microwave Vent Damper
1005304520014 Frigidaire Microwave Coupler
1015304509438 Frigidaire Microwave Support Glass Tray
1025304525313 Frigidaire Tray
1035304509450 Frigidaire Microwave Cover
104Air duct, assembly
1055304509456 Frigidaire Microwave Cover
106Grill, vent
1075304509487 Frigidaire Microwave Mounting Bracket
1085304513469 Frigidaire Microwave Mounting Kit
