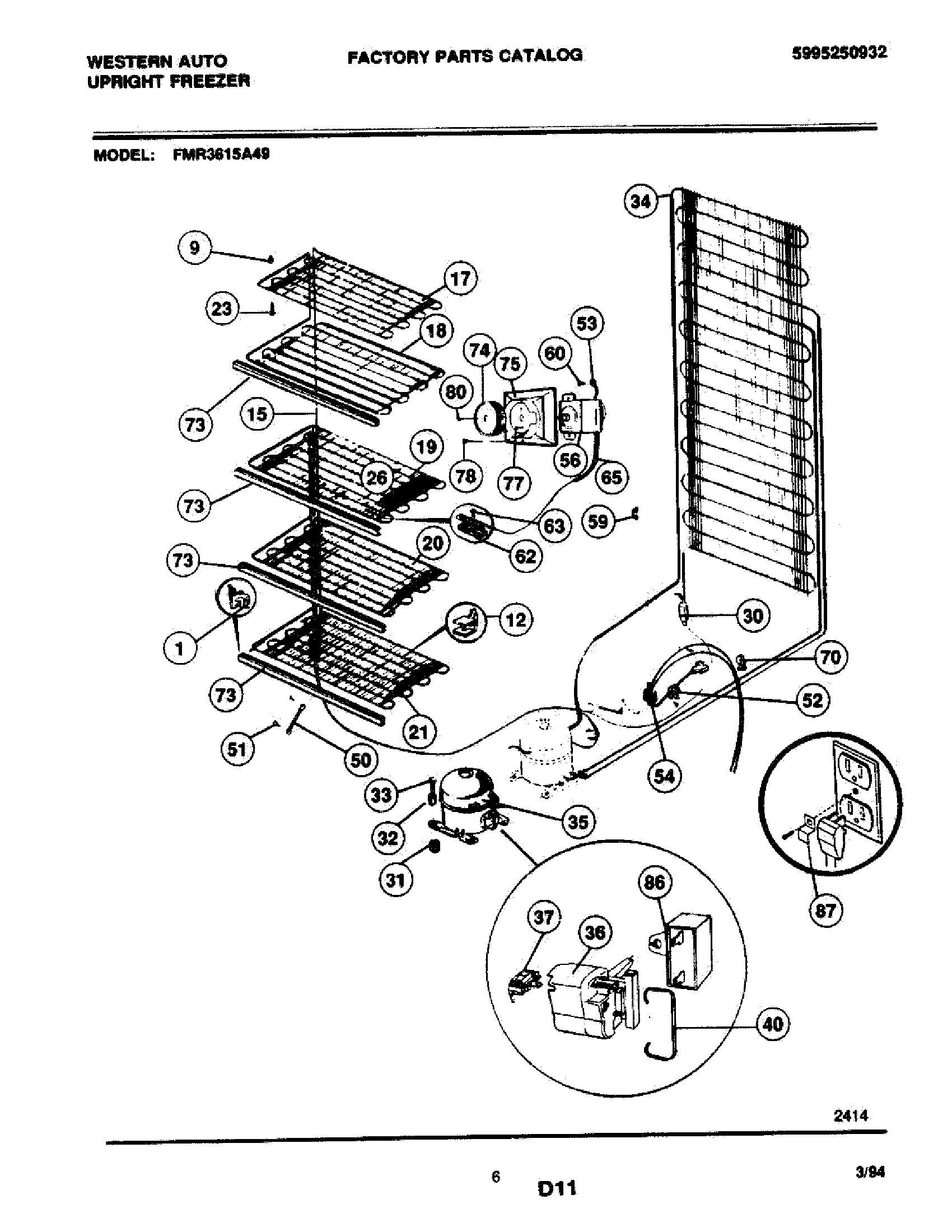

FMR3615A49 07 – SYSTEM

Products

Position	Product
	WCI 216159300
1	297001500 Frigidaire Shelf Support
1	297001600 Frigidaire Shelf Support
9	GROMMET-SPACER
12	WCI 216225600
15	WCI 08010753
17	297234400 Frigidaire Refrigerator Evaporator
20	WCI NOT USED
21	WCI 216070400
23	WCI 216138900
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
34	5300123788 Frigidaire Refrigerator Condenser
35	WCI 216120800
36	WCI 216008900
37	WCI 5303206816
40	WCI 216147800
50	WCI 06594651
51	WCI 08037851
52	5304455846 Frigidaire Refrigerator Clamp
53	WIRE-GROUND, TEMP CONTROL
54	WIRING HARNESS
56	WCI 216260400
59	RETAINER, WIRE, BREAKER
60	216036601 Frigidaire Refrigerator Screw
62	CLAMP, CAP TUBE, COLD CONTROL
63	SCREW, CLAMP, TRUSS HD CR, CONTROL
65	TUBE
70	5303212614 Frigidaire Refrigerator Clip
73	5304509722 Frigidaire Refrigerator Shelf
74	WCI 216008602
75	WCI 5303288184
77	SCREW, COVER CONTROL
78	131420300 Frigidaire Screw
80	WCI 09950853
86	5304464438 Frigidaire Compressor Run Capacitor
87	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU

No products found
