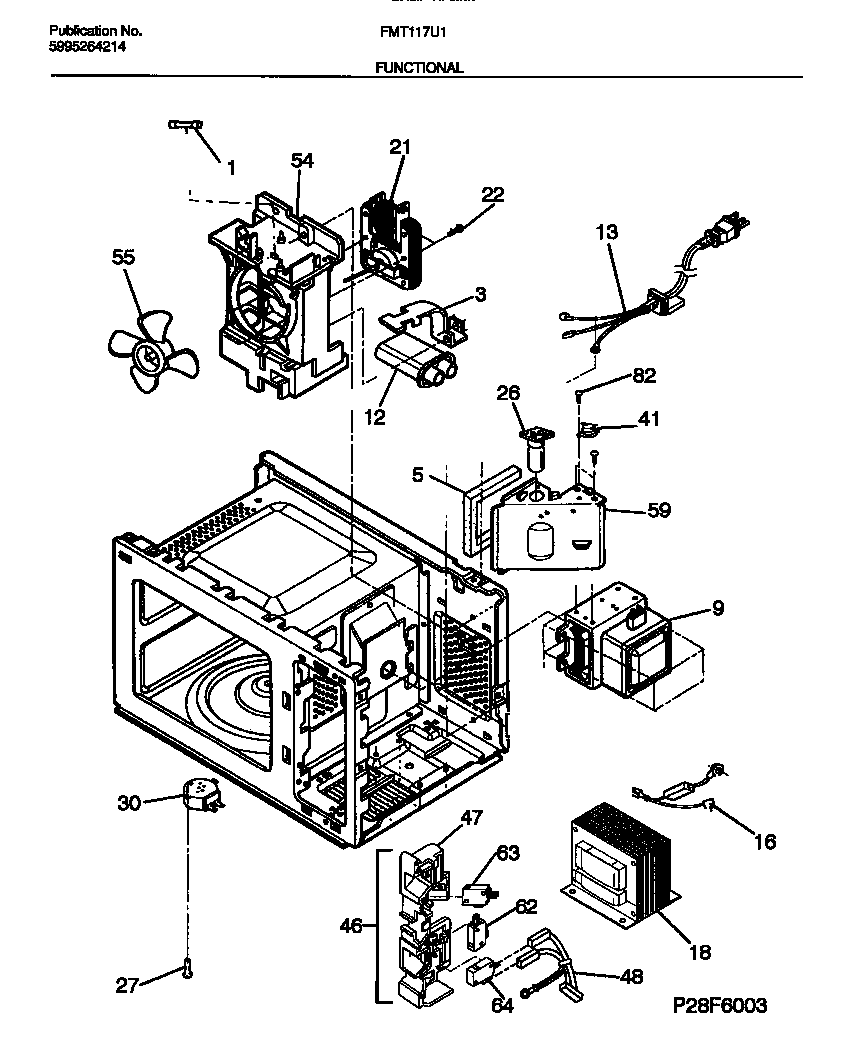

FMT117U1W0 04 – FUNCTIONAL

Products

PositionProduct
*83965WCI 5303307967
*83964WCI 5303305382
*83962WCI 5303305372
*83961WCI 5303305405
*83963WCI 5303284220
*83960WCI 5303284217
1WCI 5303307973
3RETAINER-CAPACITOR
5WCI 5303307972
9WCI 5303307970
12WCI 5303307966
13WCI 5303307968
16WCI 5303305383
18WCI 5303307971
21BNUT-FAN MOTOR (NOT ILLUSTRATED)
21AWCI 5303305379
22SCREW-FAN MOTOR
26WCI 5303305385
27WCI 5303305373
30WCI 5303305370
41WCI 5303305416
46WCI 5303305375
47WCI 5303305376
48WCI 5303307936
54DUCT-FAN
55WCI 5303307965
59WCI 5303307969
62WCI 5303271369
63SECONDARY INTERLOCK-SWITCH
64WCI 5303284023
82BSCREW, CAPACITOR MTG., HANDLE
82AWCI 5303305393
