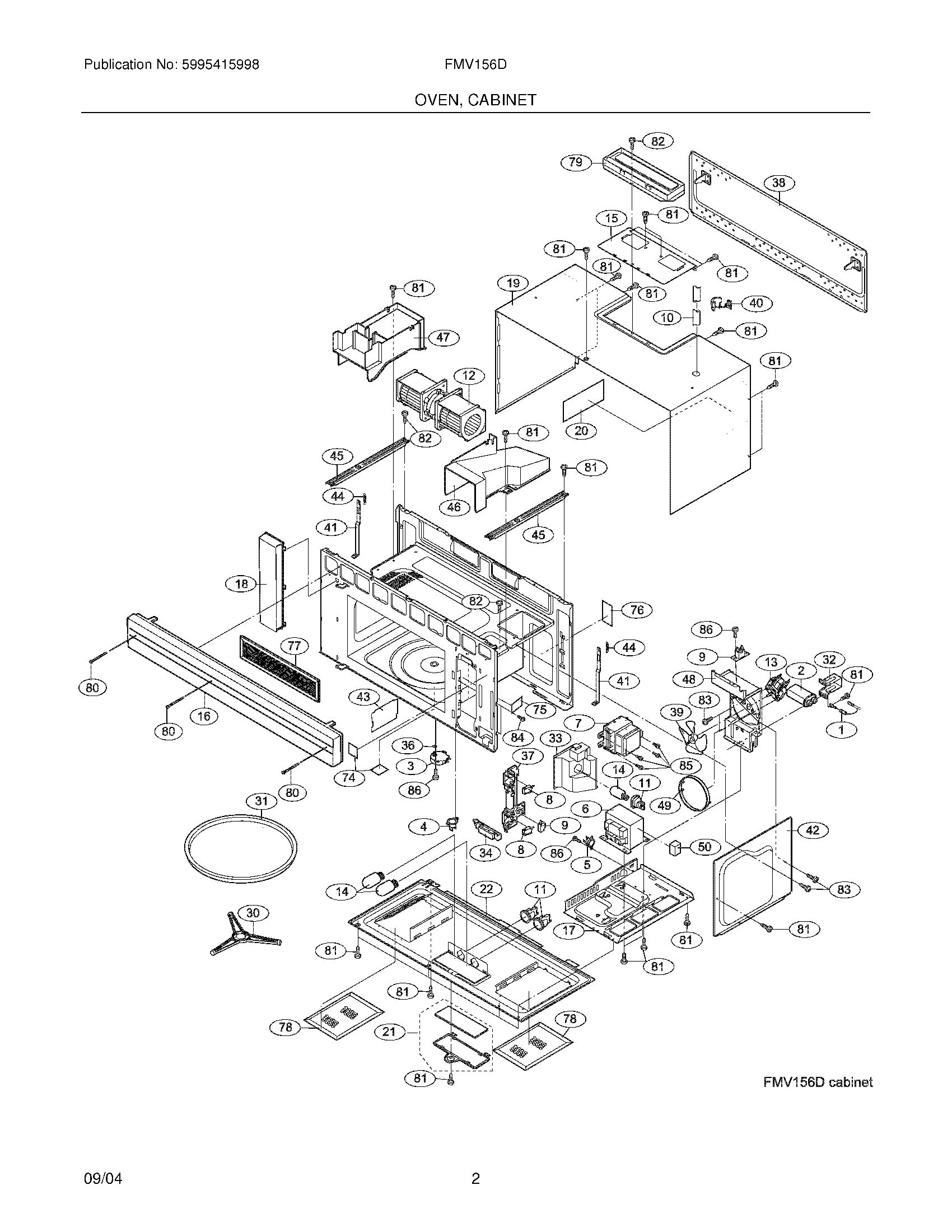

FMV156DBA 03 – OVEN/CABINET

FMV156DBA 03 – OVEN/CABINET

Written by

in

FMV156DBA 03 – OVEN/CABINET

Products

PositionProduct
1WCI 5304441844
2WCI 5304440342
35304440021 Frigidaire Microwave Oven Turntable Drive Motor
4WCI 5304440032
55304440023 Frigidaire Microwave Thermal Cutout
6WCI 5304441845
7WCI 5304441846
85304493153 Frigidaire Microwave Door Switch
95304468224 Frigidaire Microwave Oven Relay Micro Switch Assembly
105304440028 Frigidaire Microwave Power Cord
115303319561 Frigidaire Microwave Lamp Socket
12WCI 5304441847
13WCI 5304441848
145304440031 Frigidaire Microwave 20W 125V Medium Light Bulb
15WCI 5304441849
165304498733 Frigidaire Black Exhaust Grille
17WCI 5304441853
18WCI 5304441854
19WCI 5304441858
20WCI 5304441861
21WCI 5304440242
22WCI 5304441862
305304467717 Frigidaire Microwave Glass Tray Support
31TRAY,TURNTABLE,GLASS
32WCI 5304441873
33WCI 5304441874
345304485407 Frigidaire Microwave Door Release Assembly
36WCI 5304440288
37WCI 5304440289
38WCI 5304441833
39WCI 5304440843
40WCI 5303319605
41WCI 5304441875
42WCI 5304441876
435304440845 Frigidaire Microwave Cover
445304440316 Frigidaire Microwave Spring Assembly
45WCI 5304441877
46WCI 5304441878
47WCI 5304441879
48WCI 5304441880
49WCI 5304441881
50WCI 5304441882
74WCI 5304441900
755304440334 Frigidaire Microwave Label
765304440333 Frigidaire Label
77WCI 5304441901
785303319568 Frigidaire Microwave Grease Filter Aluminum
795304464343 Frigidaire Microwave Assembly Damper
805304441378 Frigidaire Microwave Screw
815304451553 Frigidaire Microwave Screw
825304414648 Frigidaire Oven Screw
835304450253 Frigidaire Microwave Screw
845303319641 Frigidaire Screw
85WCI 5303319636
86WCI 5303319633
