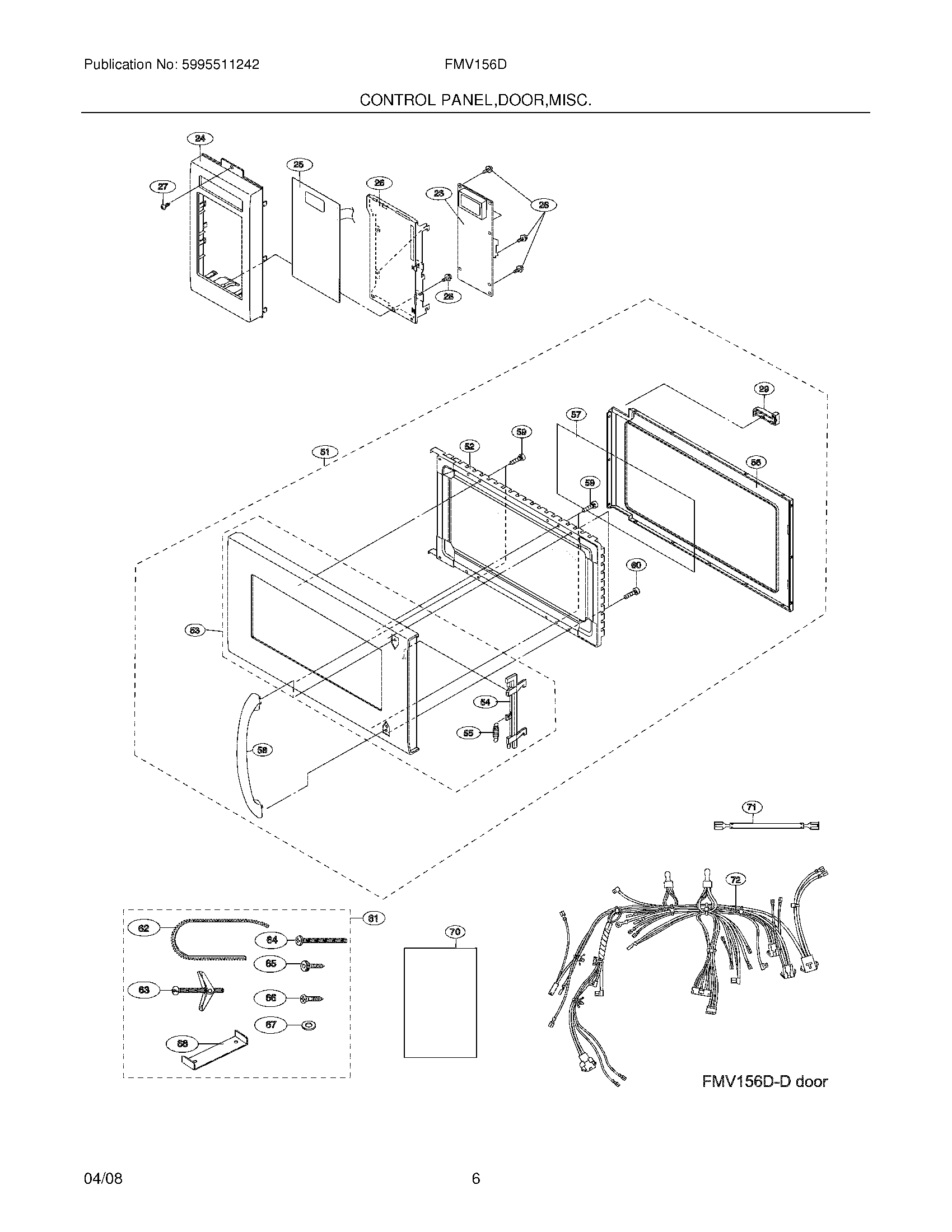

FMV156DCD 05 – CONTROL PANEL,DOOR,MISC.

FMV156DCD 05 – CONTROL PANEL,DOOR,MISC.

Written by

in

FMV156DCD 05 – CONTROL PANEL,DOOR,MISC.

Products

PositionProduct
23WCI 5304441863
24Frame,control panel ,stainless steel
255304441868 Frigidaire Microwave Switch
26WCI 5304440281
27WCI 5304458568
285304456930 Frigidaire Microwave Screw
29WCI 5304441871
51Door Assy,stainless ,w/handle
52WCI 5304441887
545304441893 Frigidaire Microwave Latch
555304440316 Frigidaire Microwave Spring Assembly
56WCI 5304441894
575304440860 Frigidaire Microwave Seal
585304440323 Frigidaire Black Door Handle
595304451561 Frigidaire Microwave Screw
60WCI 5304458213
61WCI 5304461272
62WCI 5303319605
63WCI 5303318762
645304453895 Frigidaire Microwave Screw
655304451553 Frigidaire Microwave Screw
66WCI 5304453723
67WCI 5304453724
68WCI 5304441896
70WCI 5304458571
71WCI 5304441898
72WCI 5304451820
