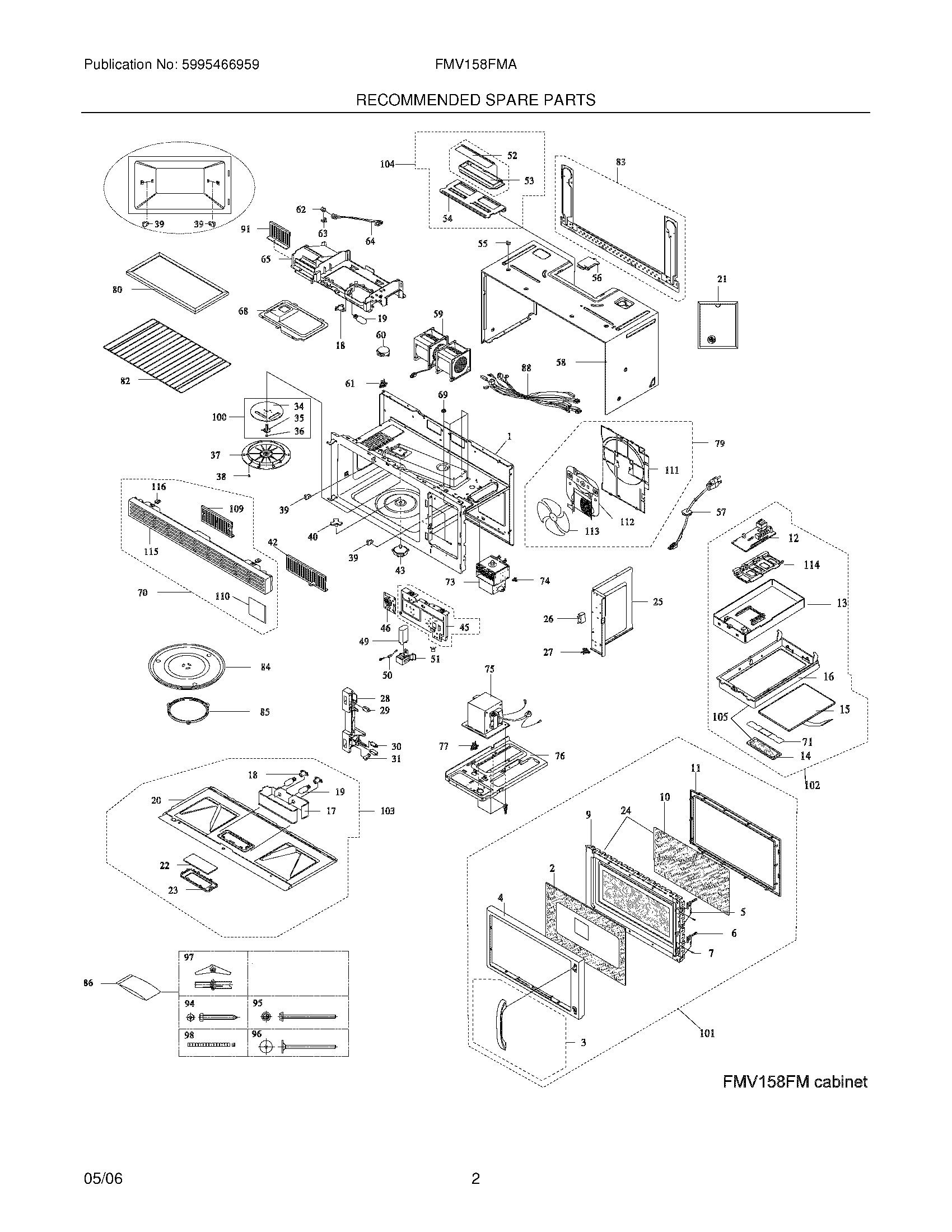

FMV158FMA 03 – SPARE PARTS

FMV158FMA 03 – SPARE PARTS

Written by

in

FMV158FMA 03 – SPARE PARTS

Products

PositionProduct
1Cavity,oven ,assembly
2WCI 5304456148
3WCI 5304456149
4Panel,outer door
5WCI 5304456151
6Latch,door
7WCI 5304456153
9WCI 5304456154
10Seal,door ,film
11Frame,choke cover ,inner door
12WCI 5304456155
13Panel,control mount ,bracket
14WCI 5304456157
15Switch,touch pad ,membrane
16Frame,control panel
17WCI 5304456160
18Lampholder,socket
19Lamp,incandescent
20WCI 5304456161
21WCI 5304456162
22WCI 5304456163
23WCI 5304456164
24Panel,inner door ,w/seal
25Duct,intake ,side
26WCI 5304456068
27WCI 5304456167
28Latch Hook
29WCI 5304456100
305304456101 Frigidaire Microwave Switch
31WCI 5304456099
34Fan Blade,stirrer
35WCI 5304456170
36WCI 5304456171
37WCI 5304456141
38WCI 5304456142
39WCI 5304456172
40Coupler,turntable/motor
42WCI 5304456174
43WCI 5304456175
45WCI 5304456176
46WCI 5304456082
49Capacitor,air guide assy
50WCI 5304456178
51WCI 5304456179
52WCI 5304456125
53WCI 5304456126
54WCI 5304456180
55WCI 5304456122
56WCI 5304456181
57WCI 5304456128
58WCI 5304456182
59WCI 5304456183
60Motor,synchronous
61WCI 5304456094
62WCI 5304456185
63WCI 5304456186
64WCI 5304456187
65Duct,upper
68WCI 5304456189
69WCI 5304456190
70WCI 5304456191
71WCI 5304456192
73WCI 5304456105
74Thermostat
75WCI 5304456193
76WCI 5304456194
77WCI 5304456139
79WCI 5304456195
80WCI 5304455656
82WCI 5304456196
83Bracket,mounting plate ,rear
84WCI 5304456198
85WCI 5304456199
86WCI 5304456200
88WCI 5304456201
91WCI 5304456202
94Screw,machine ,inch
95Bolt,toggle ,(3)
96Bolt,flat head
97Nut,toggle ,(3)
98Grommet,nylon ,(2)
100WCI 5304456203
101WCI 5304456204
102WCI 5304456205
103WCI 5304456206
104WCI 5304456207
105WCI 5304456208
109WCI 5304456209
110WCI 5304456210
111WCI 5304456211
112WCI 5304456212
113Fan Blade
114WCI 5304456214
115WCI 5
