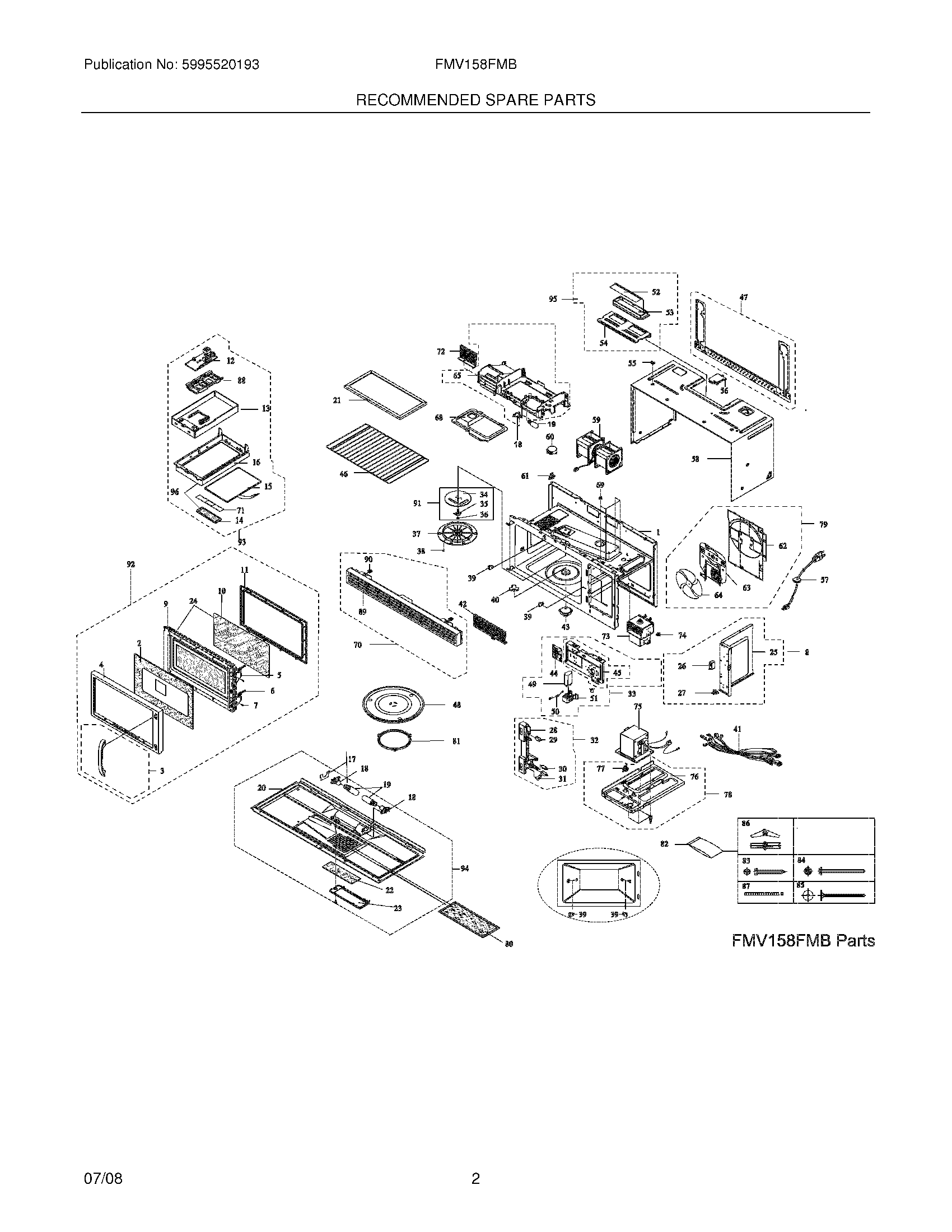

FMV158FMB 03 – RECOMMENDED SPARE PARTS

FMV158FMB 03 – RECOMMENDED SPARE PARTS

Written by

in

FMV158FMB 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Cavity,oven ,assembly
2WCI 5304456148
3WCI 5304456149
4Panel,outer door
5WCI 5304456151
6Latch,door
7WCI 5304456153
8WCI 5304468546
9WCI 5304468547
10Seal,door ,film
11Frame,choke cover ,inner door
12WCI 5304468548
13Panel,control mount ,bracket
14WCI 5304456157
15Switch,touch pad ,membrane
16Frame,control panel
17WCI 5304468549
18Lampholder,socket
19Lamp,incandescent
20WCI 5304456083
21WCI 5304455656
22WCI 5304456087
23WCI 5304456085
24Panel,inner door ,w/seal
25Duct,intake ,side
26WCI 5304456068
27WCI 5304456167
28Latch Hook
29WCI 5304456100
305304456101 Frigidaire Microwave Switch
31WCI 5304456099
32Latch Body,assembly
33WCI 5304468550
34Fan Blade,stirrer
35WCI 5304456170
36WCI 5304456171
37WCI 5304456141
38WCI 5304456142
39WCI 5304456172
40Coupler,turntable/motor
41WCI 5304468551
42WCI 5304456174
43WCI 5304456175
44WCI 5304456082
45WCI 5304456176
46WCI 5304456196
47Bracket,mounting plate ,rear
48WCI 5304456198
49Capacitor,air guide assy
50WCI 5304456178
51WCI 5304456179
52WCI 5304457620
53WCI 5304456126
54WCI 5304456180
55WCI 5304456122
56WCI 5304456181
57WCI 5304456128
58WCI 5304468552
59WCI 5304468553
60Motor,synchronous
61WCI 5304456094
62WCI 5304456211
63WCI 5304468554
64Fan Blade
65Duct,upper
68WCI 5304456189
69WCI 5304456190
70WCI 5304456191
71WCI 5304456192
72WCI 5304456202
73WCI 5304456105
74Thermostat
75WCI 5304456193
76WCI 5304468555
77WCI 5304456139
78WCI 5304468556
79WCI 5304468557
80WCI 5304465235
81WCI 5304456199
82WCI 5304456200
83Screw,machine ,inch
84Bolt,toggle ,(3)
85Bolt,flat head
86Nut,toggle ,(3)
87Grommet,nylon ,(2)
88WCI 5304456214
89WCI 5304456215
90WCI 5304456216
91WCI 5304456203
92WCI 5304456204
93WCI 5304456205
94WCI 5304468558
95WCI 5304457619
96WCI 5
