FMW220AN4D 05 – SHELVING

FMW220AN4D 05 – SHELVING

Written by

in

FMW220AN4D 05 – SHELVING

Products

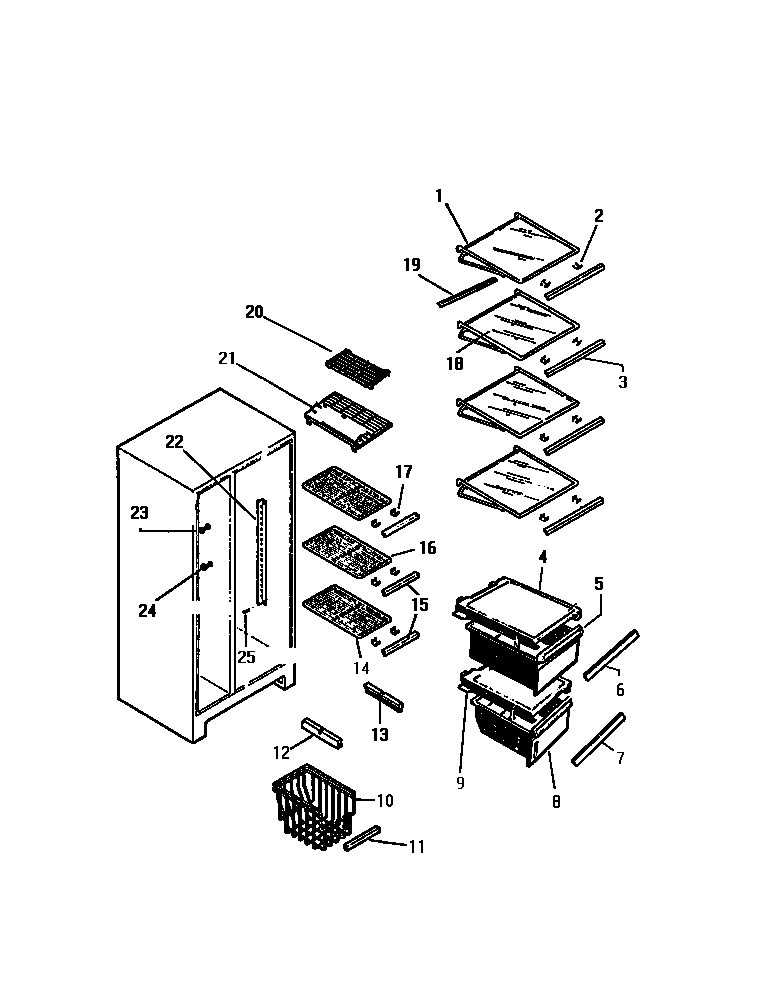

PositionProduct
*13589SCREW-TRIM MTG (2) (NON-ILLUSTRATED)
1WCI G171608-08
3TRIM-SHELF-FRONT (4)
4COVER-UPR PAN
5FAN, CRISPER UPPER
6TRIM PAN, UPPER
7WCI G161013-52
8WCI G171259-08
9COVER-LWR PAN
10WCI G171611
11WCI G167779-06
12HANGER-BASKET LS
13HANGER-BASKET RS
14SHELF-FREEZER, BOTTOM
15TRIM-CLIP ON (3)
16SHELF-FRZR, CTR (2)
16A5304509705 Frigidaire Refrigerator Grommet
17CLIP-TRIM (NON-ILLUSTRATED)
18WCI G171654-15
19WCI G172436-16
20SHELF
20ALABEL-SHELF (NON-ILLUSTRATED)
21SHELF
21ALABEL-SHELF (NON-ILLUSTRATED)
22CHANNEL-RS & LS
23AWCI G177636
23SUPPORT, ICE MAKER (2)
24ASCREW – SUPPORT TO LINER (8)
24SUPPORT, SHELF (8)
255304455852 Frigidaire Refrigerator Screw
