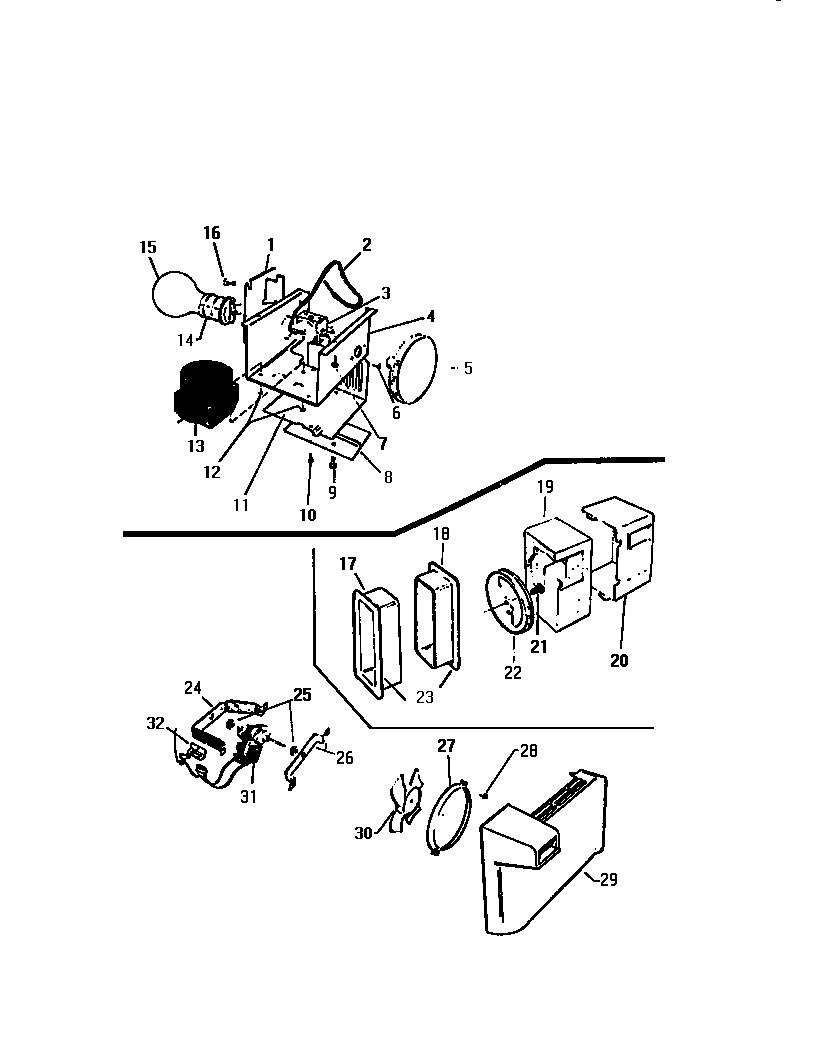

FMW220AN4D 06 – CONTROLS & FAN

Products

Position	Product
*13592	WCI G170839
*13591	NUT, ORIFICE (2)
1	WCI G165543
2	TUBE
3	CONTROL
4	WCI G164788
5	WCI G164906-01
6	WCI G107080
7	5304455852 Frigidaire Refrigerator Screw
8	WCI G166068
10	5308000039 Frigidaire Refrigerator Screw
11	COVER CONT. BRACKET
12	5304455649 Frigidaire Refrigerator Screw
13	215846604 Frigidaire Refrigerator Defrost Timer
14	WCI G157160
15	316538904 Frigidaire Oven Lamp Light
16	WCI G165545
17	WCI G166802
18	WCI G166803
19	WCI G164575
20	WCI G164523
21	WCI G185373
22	KNOB, DAMPER CONT.
23	WCI G167582
24	BRACKET, REAR MOTOR MOUNTING
25	G187559 Frigidaire Refrigerator Bushing
26	BRACKET, FRONT MOTOR MOUNTING
27	RING, FAN ORIFICE
28	5304455650 Frigidaire Refrigerator Screw
29A	FOAM TAPE-COVER
29	WCI G181917-01
30	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
31	5300158289 Frigidaire Evaporator Fan Motor
32	WCI G164571
