FMW220AN4F 08 – ICE DOOR HOUSING – Aparts

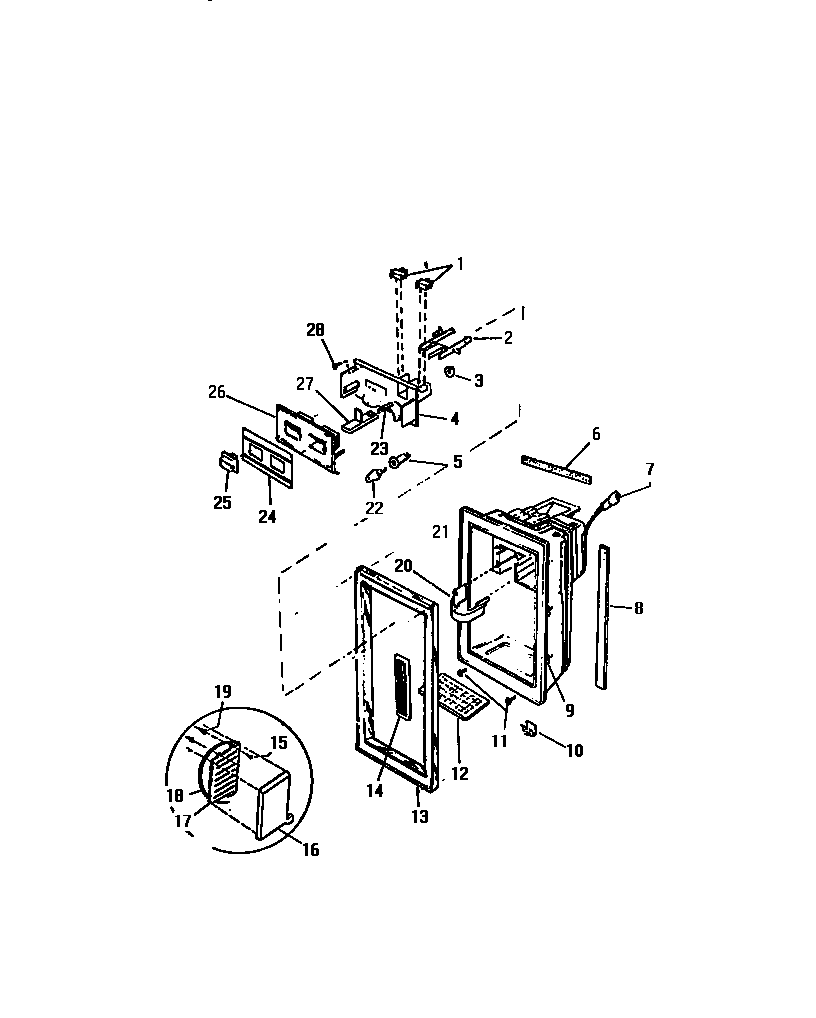

FMW220AN4F 08 – ICE DOOR HOUSING

Products

Position	Product
*13594	WCI G186533
*13595	WCI G185226
1	WCI G185542
2	WCI G177725
3	WCI G174411
4	PLATE-SWITCH MTG
5	WCI G177729
6	WCI G182850
7	WCI G182738
8	INSULATION, SIDES
9	NUT, SPEED (2)
10	CLIP-HSG FRAME (2)
12	WCI G182551-01
13	FRAME-DOOR HOUSING
14	WCI G182929
15	131420300 Frigidaire Screw
16	WCI G163925-02
17C	NUT, INLET TO SOLENOID VALVE
17B	WCI G186057
17	TANK-WATER
17A	WCI 186058
18	TUBE-CUT TO SIZE (2)
19	WCI G163938
20	SKIRT
21	WCI G181110-03
22	WCI 5304506475
23	SPRING-WTR ACTUATOR
24	WCI G182654-02
25	WCI G187106-01
26	WCI G182643-01
27	WCI G185063-01
28	WCI G185567
