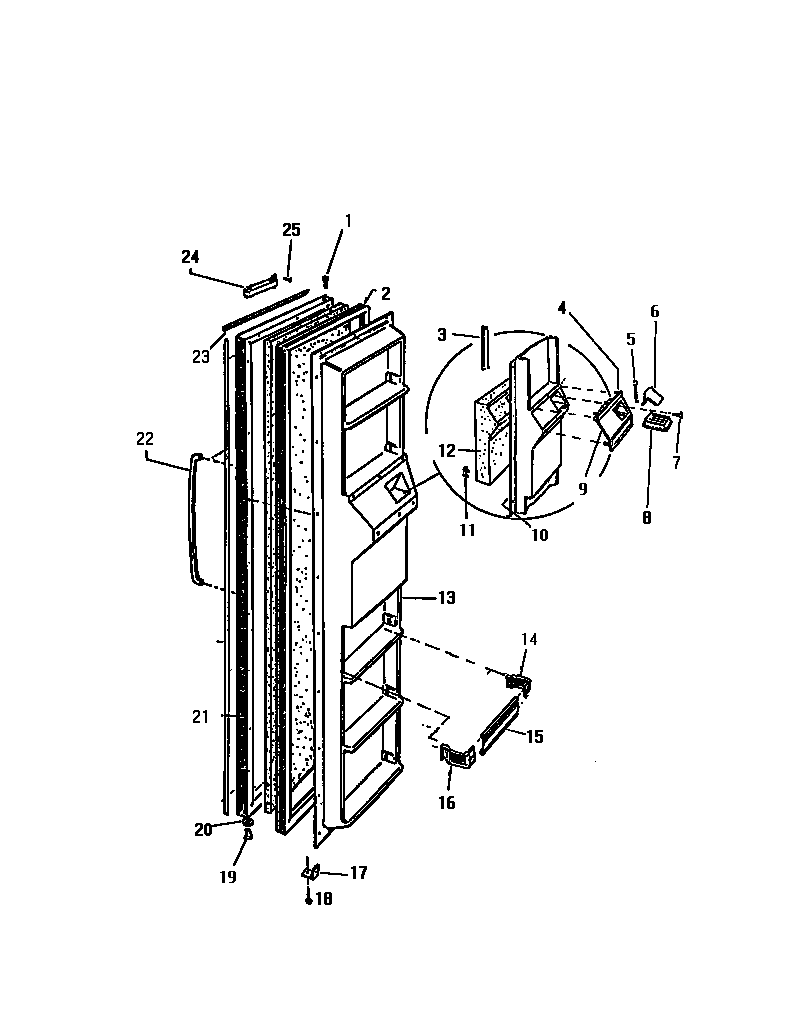

FMW220AN4T 02 – FREEZER DOOR

Products

Position	Product
*13565	BUTTON PLUG DOOR STOP HOLES, WHEAT
*13562	WCI G182837
*13561	WCI G182836
*13560	BUTTON, PLUG, DOOR TRIM (4)
1	WCI G183139
2	WCI G180551-03
3	WCI G177720
4	WCI G179017
5	SPRING-FLIPPER
6A	WCI G177742
6	WCI G175040-04
7	5304455650 Frigidaire Refrigerator Screw
8	WCI G180637
9	WCI G181241-01
10	WCI G185226
11	RETAINER
11A	NUT, SPEED (2)
11B	NUT, INLET TO SOLENOID VALVE
12	INSULATION
13	WCI G183225-01
14	WCI G170022-01
15	WCI G162939-25
16	WCI G170023-01
17	BUMPER-LIGHT SW.
18	5304455651 Frigidaire Refrigerator Screw
19	BUSHING-LWR HINGE
20	BEARING, HINGE (3)
21	WCI G183226-09
22A	WCI G185566
22	HANDLE, DOOR PC & FC (2)
23A	WCI G161002-18
23B	WCI G172680-16
23	WCI G184297-02
24	DOOR CLOSER
25	WCI G169729
