FMW220AN4T 04 – CABINET

FMW220AN4T 04 – CABINET

Written by

in

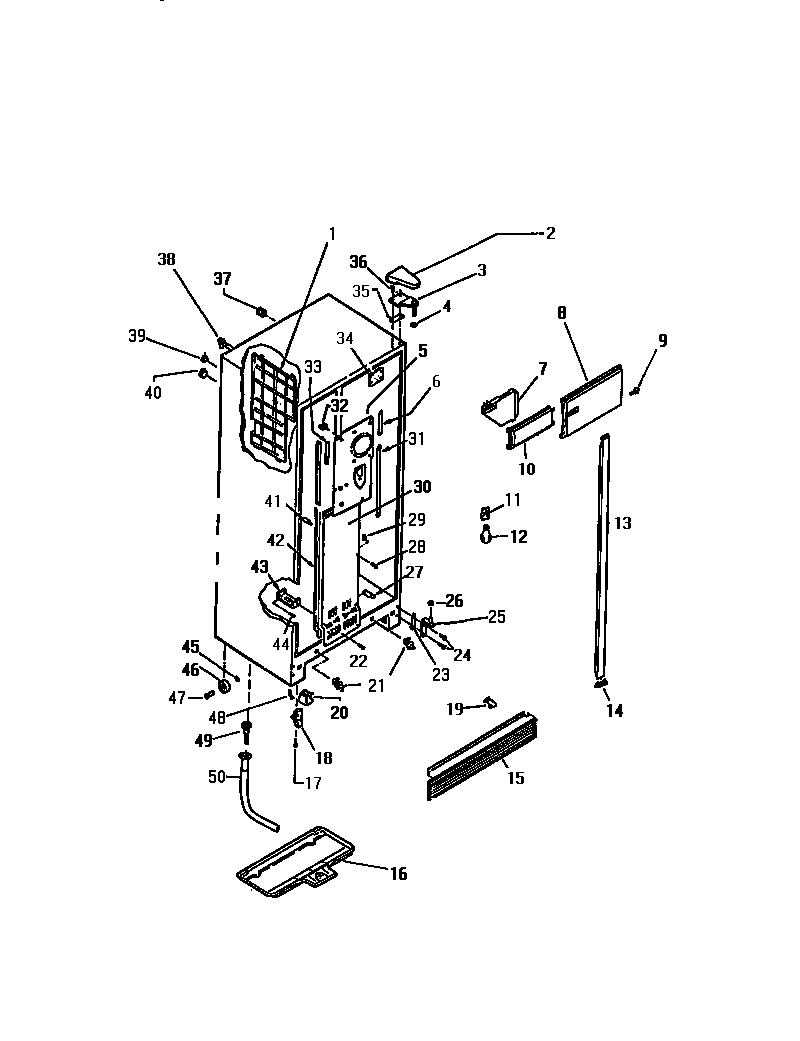

FMW220AN4T 04 – CABINET

Products

PositionProduct
*13586BOX, LIGHT
*13573BUTTON, PLUG, LINER (2)
*13580TAPPING PLATE (2)
*13584WCI G166801
*13583WCI G166800
*13582FERRULE, OUTER
*13581FERRULE, INNER
*13576WIRING HARNESS-ICE MAKER-UPPER
*13575WCI G168541
*13585WCI G164571
*13588WCI G167582
*13587WCI G183100-63
*13574WCI G183256
*13578WCI G182901
*13577WCI G174678
*135795303001147 Frigidaire Refrigerator Plug-Harness Hole
1ASUPPORT
1DIVIDER I.M.
2COVER HINGE, WHEAT
3AWCI G183716
3HINGE-TOP RS
4WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
5COIL COVER-UPPER
6WCI Q165233
7WCI G174711-01
8WCI G169601-12
9WCI G165177
10WCI G182527-03
11218906802 Frigidaire Light Lamp Socket
12316538904 Frigidaire Oven Lamp Light
13WCI G164643-09
14WCI G169745-09
15GRILLE
16WCI G171125
17BOLT, HOUSING TO FRONT RAIL (2)
18ROLLER ASSEMBLY – FRONT (2)
19CLIP, GRILLE
20WCI G177743
20ANUT, INLET TO SOLENOID VALVE
215303289051 Frigidaire Refrigerator Light Switch
22WCI G184851
23SHIM, HINGE
24SCREW – 1/4 X 1 (2)
25BRACKET-LOWER HINGE
25BWCI G141673
25CWCI G142361
25DNUT, SPEED (2)
25AHINGE-BOTTOM LS (NON-ILLUSTRATED)
26WASHER, NYLON
27WCI G164912-03
29WCI G162703
30COIL COVER-LOWER
31GASKET-COVER LS
32WCI G163669
33GASKET-COVER RS
34PAD, FOAM (2)
35WCI G183861
36241710601 Frigidaire Refrigerator Screw
37TUBE, INSULATION (2)
38BWCI G175439
38215456100 Frigidaire Refrigerator Water Inlet Tube
38A5303001193 Frigidaire Refrigerator Clamp
39WCI G174734
40WCI G174733
41WCI G169471
42GASKET R & L COVER (2)
43WCI G158022
445304455650 Frigidaire Refrigerator Screw
45NUT, DAMPER MOUNTING
46ROLLER (2)
47WCI G162809
48COVER-BOTTOM HINGE
49WCI G171193
50241957901 Frigidaire Refrigerator Tube-Drain
