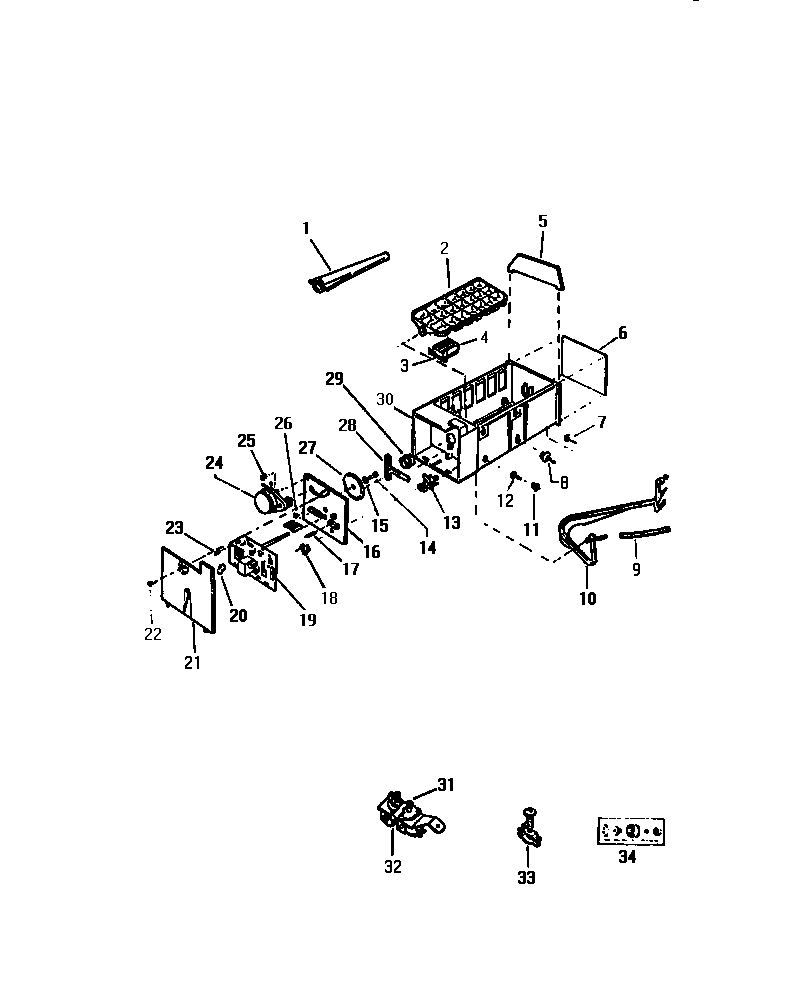

FMW220AN4T 07 – ICE MAKER

Products

Position	Product
*13593	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1	TUBE-FILLER EXTENSION
2	WCI G182507
3	RETAINER, INSULATOR
4	WCI G174479
5	WCI G182833
6	WCI G182783-03
7	WCI G186383
8	WCI G182506
9	SPRING
10	ARM
11	WCI G185464
12	WCI G186382
13	CAM
14	WCI G1744444
15	WASHER-CRANK SHAFT
16	PLATE
17	FOLLOWER, CAM
18	CLIP
19A	WCI G182859
19	PC BOARD
20	WCI G182408
21	COVER
22	WCI G185567
23	SCREW, MOTOR TO PLATE (2)
24	MOTOR-ICE MAKER
25	WCI G185562
26	NUT-HEX
27	WCI G174484
28	RACK, GEAR
29	WCI G182487
30	WCI G187057-01
31	NUT, INLET TO SOLENOID VALVE
32	VALVE, WATER
33	WCI G9928
34	WCI G159415
