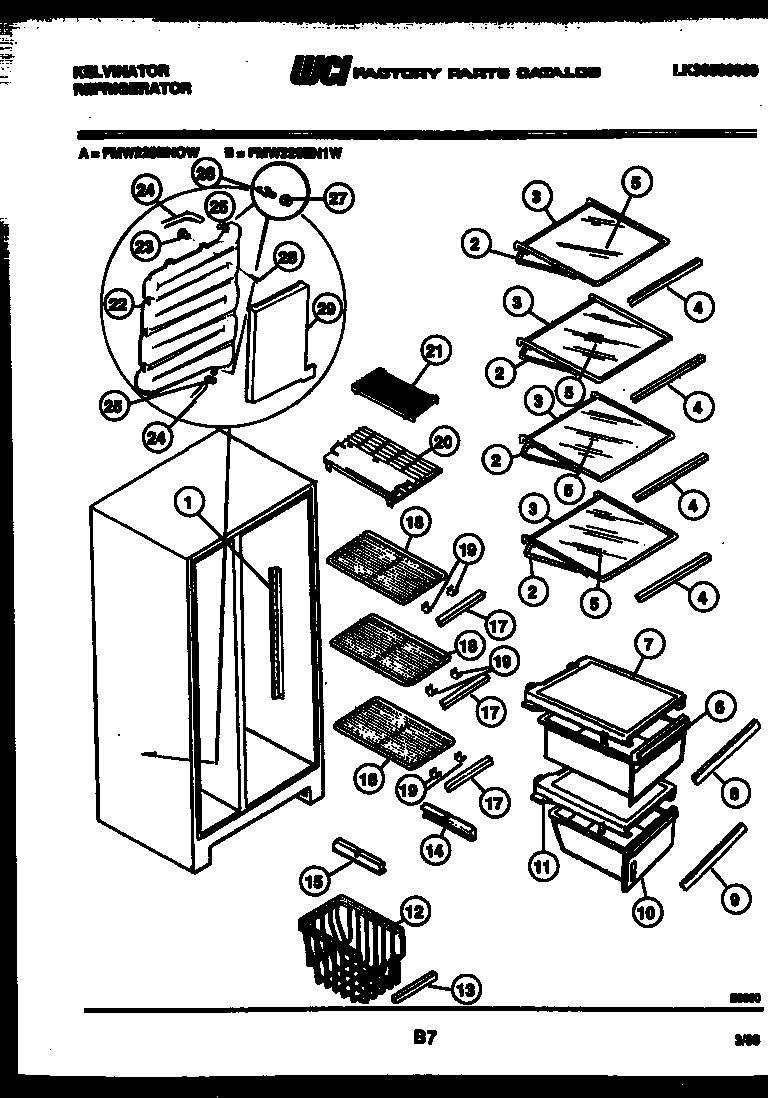

FMW220EN0F 05 – SHELVES AND SUPPORTS

Products

Position	Product
1A	5304455852 Frigidaire Refrigerator Screw
1	CHANNEL-RS & LS
2	WCI G171608-08
3	WCI G172436-16
4	TRIM-SHELF-FRONT (4)
5	WCI 3015454
6	PAN-STORAGE UPPER
7	COVER-PAN UPPER
7A	GASKET-COVER UPR (2) (NON-ILLUSTRATED)
9	TRIM-PAN LOWER
10	PAN-STORAGE LOWER
11	COVER-PAN-LOWER
12A	SCREW-TRIM MTG (2) (NON-ILLUSTRATED)
12	WCI G171611
13	WCI 3015079
14	HANGER-BASKET RS
15	HANGER-BASKET LS
16	WCI G169658-02
17	WCI G161074-37
18	SHELF-FRZR (3)
19	CLIP-TRIM (NON-ILLUSTRATED)
19A	5304509705 Frigidaire Refrigerator Grommet
20	SHELF
20A	LABEL-SHELF (NON-ILLUSTRATED)
21	SHELF
21A	LABEL-SHELF (NON-ILLUSTRATED)
22	TANK-WATER
23	WCI G163938
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25	WCI G166705
26	WCI G186058
27	WCI G186057
28	131420300 Frigidaire Screw
29	WCI G163925-02
