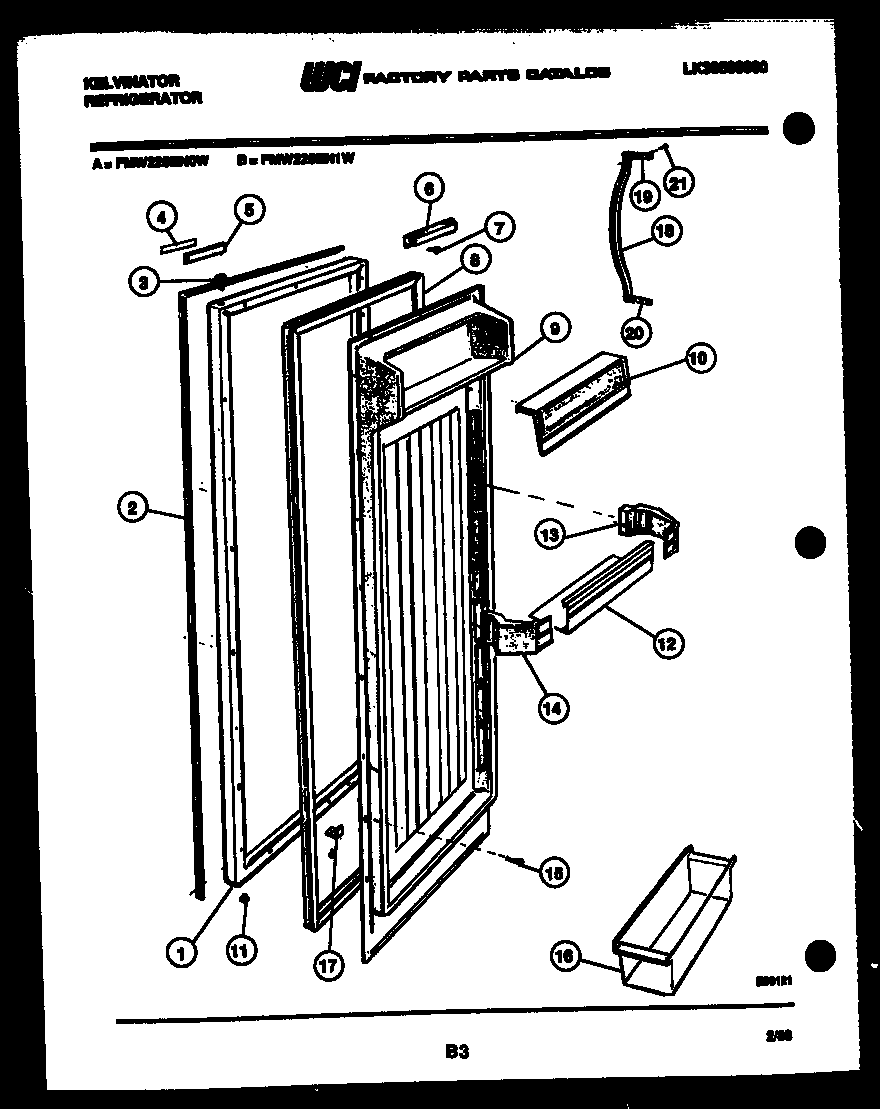

FMW220EN0V 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	WCI G189946-08
1A	WCI G152308-01
2	WCI G189468-22
3	WCI G183139
4	LABEL-NAMEPLATE, LWR
5	NAMEPLATE FRAME
6	DOOR CLOSER
7	WCI G169729
8	WCI G180551-02
9	WCI G3016862
10	WCI G167783-06
11	BEARING, HINGE (3)
12B	WCI G167115
12A	WCI G101890
12	WCI 3015078
13	WCI G163064-01
14	WCI G163065-01
16	WCI 3015068
17	BUMPER-LIGHT SW.
17A	5304455651 Frigidaire Refrigerator Screw
18D	WCI 3016230
18C	SCREW-SPACER MTG (2) (NON-ILLUSTRATED)
18B	WCI G191430
18A	WCI G189456-03
18	WCI G189455-01
19	WCI G189452-01
20	WCI G189451-01
21	WCI G185566
