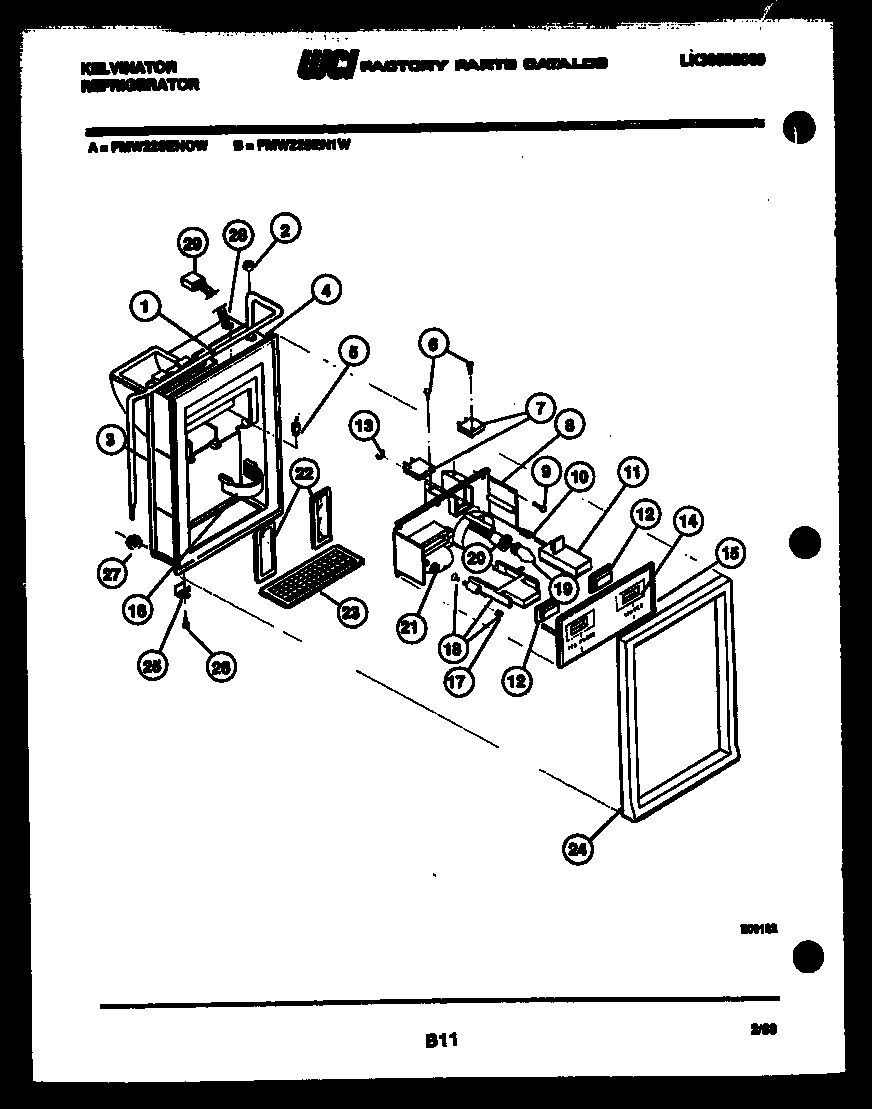

FMW220EN0W 07 – ICE DOOR, DISPENSER, AND WATER TANK

FMW220EN0W 07 – ICE DOOR, DISPENSER, AND WATER TANK

Written by

in

FMW220EN0W 07 – ICE DOOR, DISPENSER, AND WATER TANK

Products

PositionProduct
*38859DIODE KIT (NON-ILLUSTRATED)
1TUBE-WATER INLET AND PILOT ASSY
2WCI G175246
3WCI G182738
4WCI G188308-03
5WCI G179999
6WCI G177686
7WCI G185542
8PLATE-SWITCH MTG
9WCI G185567
10SPRING-WTR ACTUATOR
11WCI G185063-01
12WCI G187106-01
13WCI G174411
14WCI 3015128
15WCI G182643-01
16WCI G180004-01
17WCI G174414
18WCI G190359
19WCI 5304506475
20WCI G177729
21WCI G177724
22BWCI G191430
22WCI G182929
23WCI G182551-01
24FRAME-DOOR HOUSING
25CLIP-HSG FRAME (2)
26SCREW-CLIP MTG (2)
27PUSH NUT (6) (NON-ILLUSTRATED)
28WCI G185226
29WCI G177742
