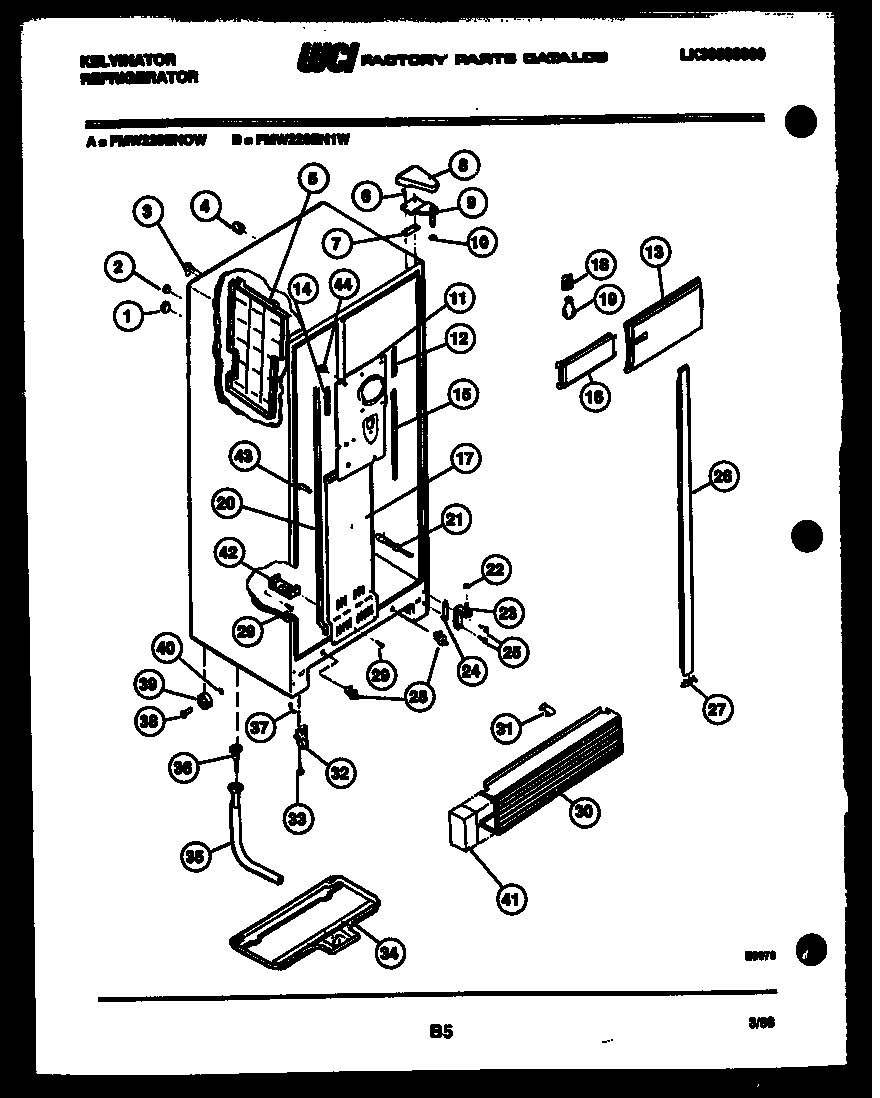

FMW220EN1T 04 – CABINET PARTS

Products

Position	Product
*38770	BUTTON, PLUG, LINER (2)
1	WCI G174733
2	WCI G174734
3	215456100 Frigidaire Refrigerator Water Inlet Tube
4	TUBE, INSULATION (2)
5	DIVIDER I.M.
6	241710601 Frigidaire Refrigerator Screw
7	WCI G183861
8	COVER HINGE, WHEAT
9	HINGE-TOP RS
9A	WCI G183716
10	WASHER, NYLON
11	COIL COVER-UPPER
12	WCI G165233
13	WCI 3016878
14	GASKET-COVER LS
15	GASKET-COVER RS
16	WCI G182527-01
17	COIL COVER-LOWER
18A	BOX, LIGHT
18	218906802 Frigidaire Light Lamp Socket
19	316538904 Frigidaire Oven Lamp Light
20	WCI G188000-03
21	WCI G164912-03
22	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
23A	HINGE-BOTTOM LS (NON-ILLUSTRATED)
23B	WCI G141673
23	BRACKET-LOWER HINGE
24	SHIM, HINGE
24A	WCI G142361
24B	NUT, SPEED (2)
25	SCREW - 1/4 X 1 (2)
26	WCI G164643-09
26A	WCI G169100
26A	WCI G169297
27	WCI G169745-09
28	5303289051 Frigidaire Refrigerator Light Switch
29	5304455650 Frigidaire Refrigerator Screw
30	WCI G174597-09
31	CLIP, GRILLE
32	ROLLER ASSY (2)
33	SCREW, MTG (2) (NON-ILLUSTRATED)
34	WCI G171125
35	241957901 Frigidaire Refrigerator Tube-Drain
36	WCI G171193
37	WCI G177743
37A	NUT, INLET TO SOLENOID VALVE
38	WCI G162809
39	ROLLER (2)
40	NUT, DAMPER MOUNTING
41	COVER-BOTTOM HINGE
42A	WASHER
42	WCI G158022
42B	WCI G184851
43	WCI G169471
44	WCI G163669
