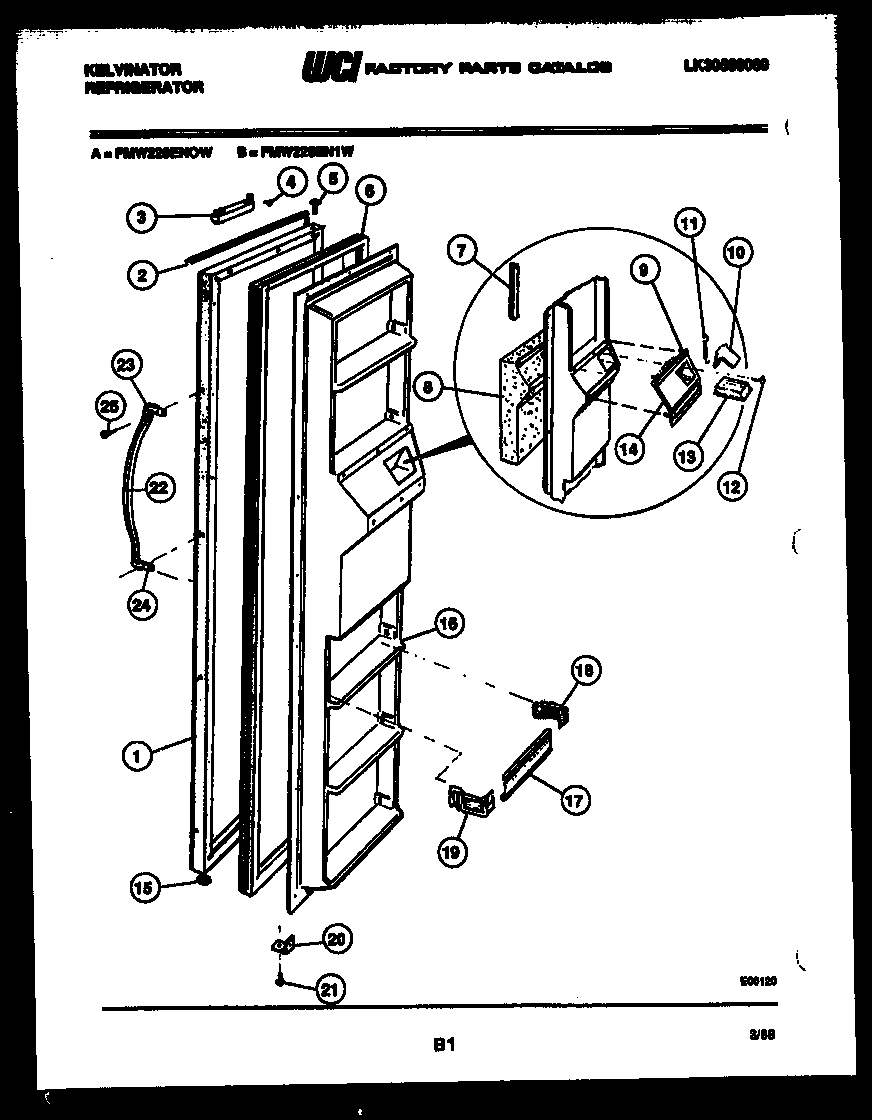

FMW220EN1W 02 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI G190072
1A	WCI G152308-01
2	WCI G189468-09
3	DOOR CLOSER
4	WCI G169729
5	WCI G183139
6	WCI G180551-03
7	WCI G177720
8	INSULATION
9	WCI G179017
10	WCI G175040-01
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI 3017430
14A	PUSH NUT (6) (NON-ILLUSTRATED)
14	WCI G181241-01
15	BUSHING-LWR HINGE
16	WCI 3015127
17	WCI 3015077
18	WCI G170022-01
19	WCI G170023-01
20	BUMPER-LIGHT SW.
21	5304455651 Frigidaire Refrigerator Screw
22D	WCI 3016230
22C	SCREW-SPACER MTG (2) (NON-ILLUSTRATED)
22A	WCI G189456-03
22	WCI G189455-01
23	WCI G189451-01
24	WCI G189452-01
25	WCI G185566
