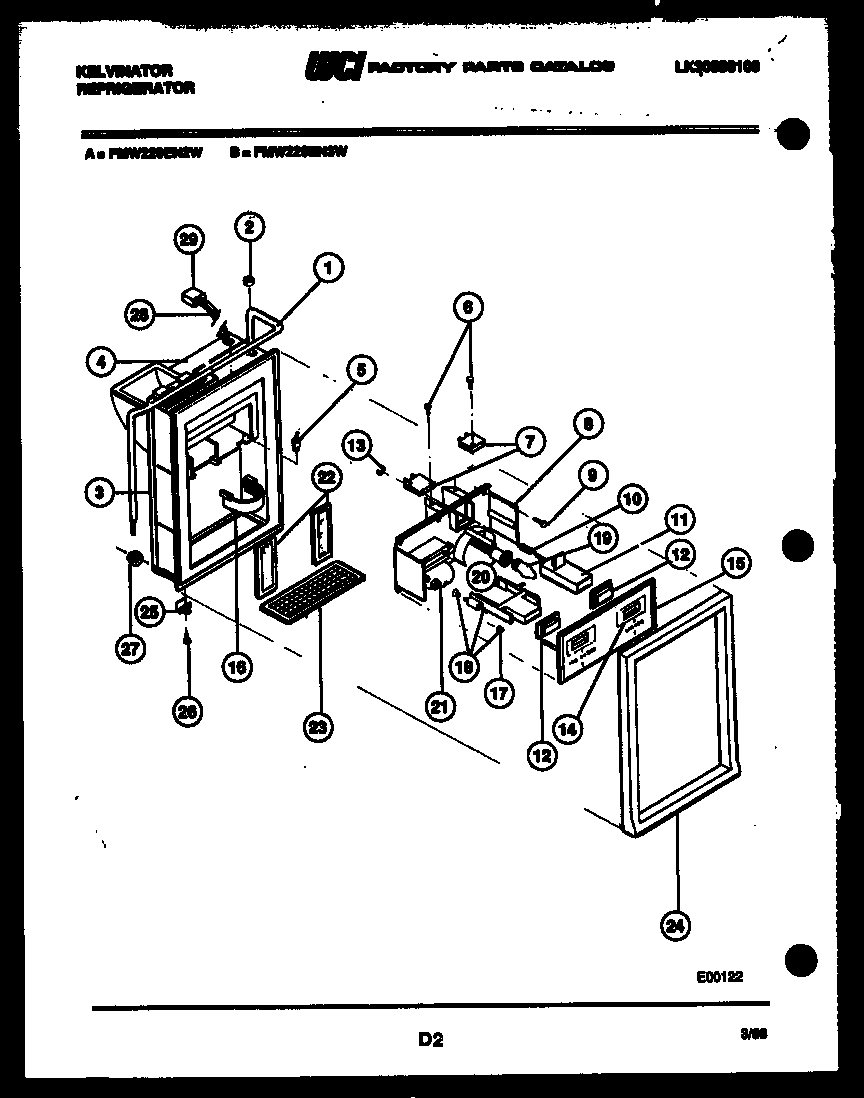

FMW220EN2F 07 – ICE DOOR, DISPENSER, AND WATER TANK

Products

Position	Product
*40205	DIODE KIT (NON-ILLUSTRATED)
1	TUBE-WATER INLET AND PILOT ASSY
2	WCI G175246
3	WCI G182738
4	WCI G188308-03
5	WCI G179999
6	WCI G177686
7	WCI G185542
8	PLATE-SWITCH MTG
9	WCI G185567
10	SPRING-WTR ACTUATOR
11	WCI G185063-01
12	WCI G187106-01
13	WCI G174411
14	WCI 3015128
15	WCI G182643-01
16	WCI G180004-01
17	WCI G174414
18	WCI G190359
19	WCI 5304506475
20	WCI G177729
21	WCI G177724
22	WCI G182929
23	WCI G182551-01
24	FRAME-DOOR HOUSING
25	CLIP-HSG FRAME (2)
26	SCREW-CLIP MTG (2)
27	PUSH NUT (6) (NON-ILLUSTRATED)
28	WCI G185226
29	WCI G177742
