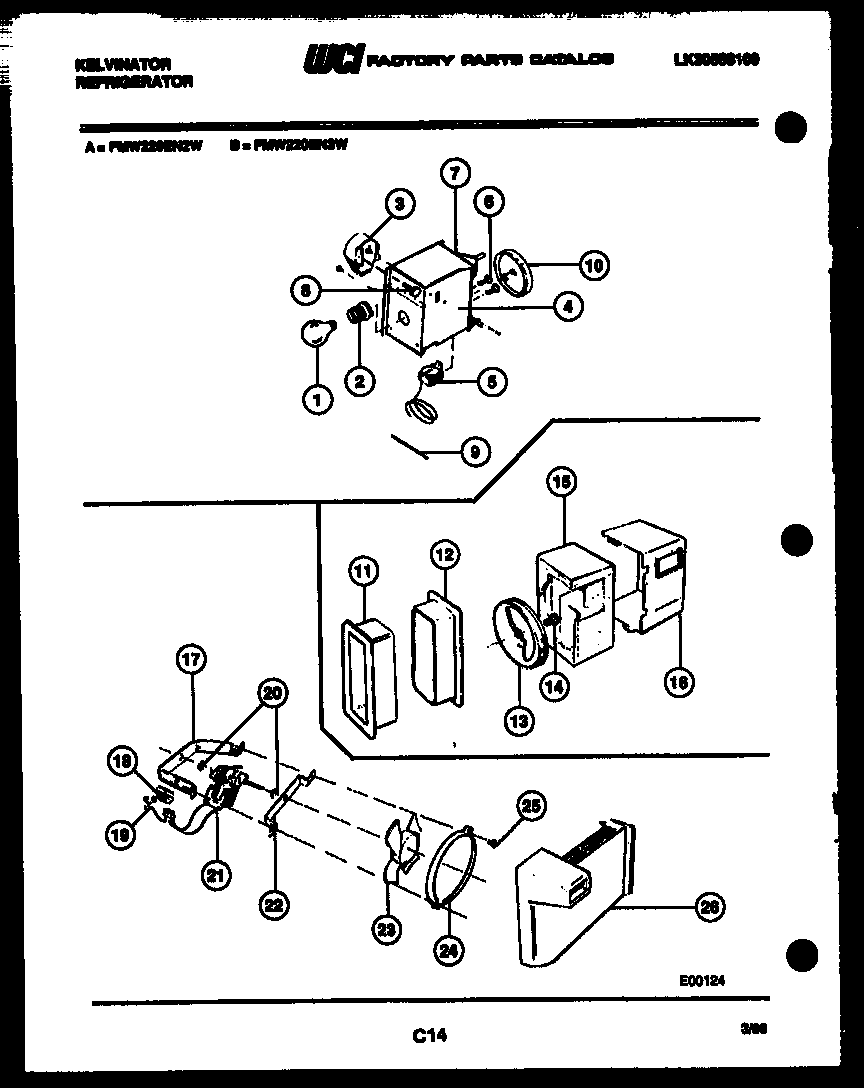

FMW220EN2T 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*40186	WIRING HARNESS-MAIN CONTROL
*40186	WCI G162703
*40185	FOAM TAPE-COVER
1	316538904 Frigidaire Oven Lamp Light
2	SOCKET LIGHT
3	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
4	5304455649 Frigidaire Refrigerator Screw
5	WCI G162205-05
6	WCI G107080
7A	WCI G165434
7	WCI G189359
8	5304455852 Frigidaire Refrigerator Screw
9	TUBE
10	WCI G164906-01
11	WCI G166802
12	WCI G166803
12A	WCI G167582
13	KNOB, DAMPER CONT.
14	WCI G185373
15	WCI G164575
16	WCI G164523
17	WCI G185303
18	WCI G164571
19	5304455651 Frigidaire Refrigerator Screw
20	G187559 Frigidaire Refrigerator Bushing
21	5300158289 Frigidaire Evaporator Fan Motor
22	WCI G185302
23	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
24	RING, FAN ORIFICE
25	5304455650 Frigidaire Refrigerator Screw
26	WCI G181917-01
