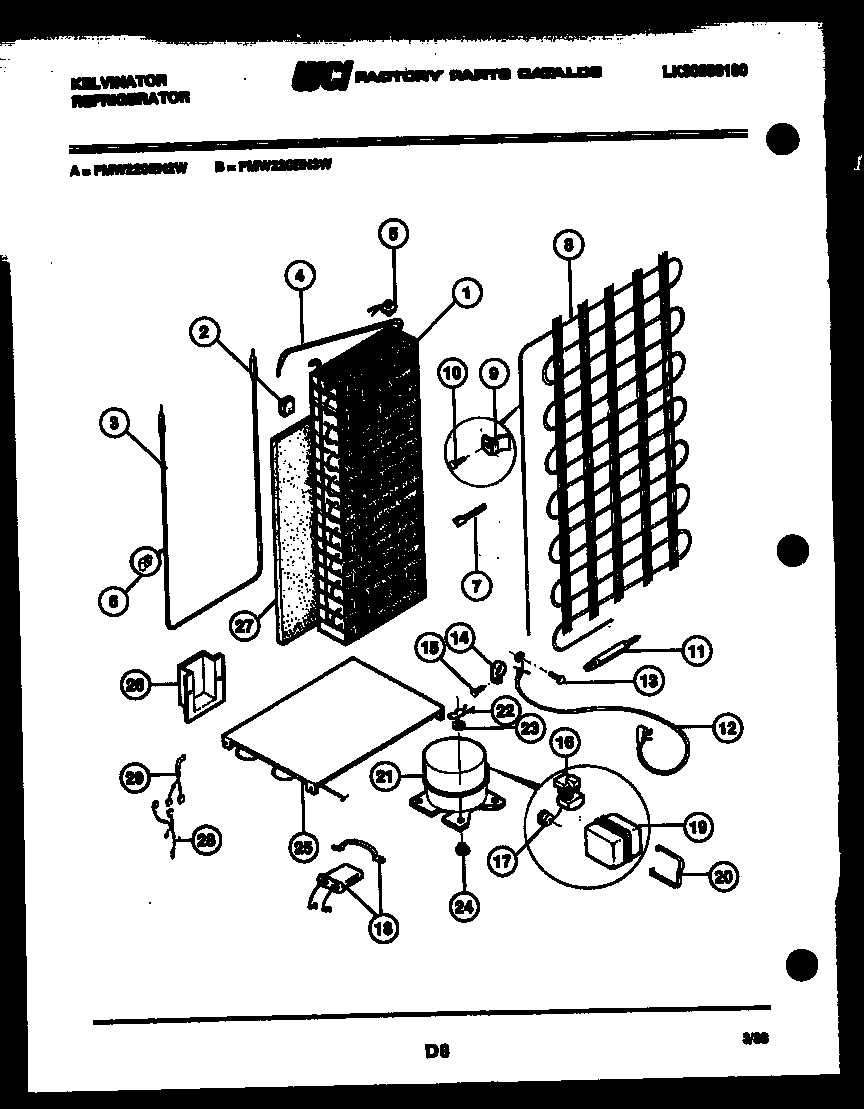

FMW220EN2T 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*40276WCI G189379
1WCI 3017362
2WCI G169493
3WCI G190223
4WCI G189609
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI G167363
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI 3007521
9BRACKET, COND. MTG (4)
105308000039 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
12CORD, SERVICE
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155304455651 Frigidaire Refrigerator Screw
16WCI G182225-18
17WCI G189028
18WCI G188885-01
18STRAP-CAPACITOR
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21COMPRESSOR WITH ELECTRICALS
22CLIP, COMPRESSOR MOUNTING (4)
23WASHER, COMPRESSOR MOUNTING (4)
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI G188596
25C218843801 Frigidaire Refrigerator Screw
25BBRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25AWCI G171111
26WCI G183584
27WCI G169641
28WIRING HARNESS-COMPR & LIGHTS
29WIRING HARNESS-MAIN CONTROL
