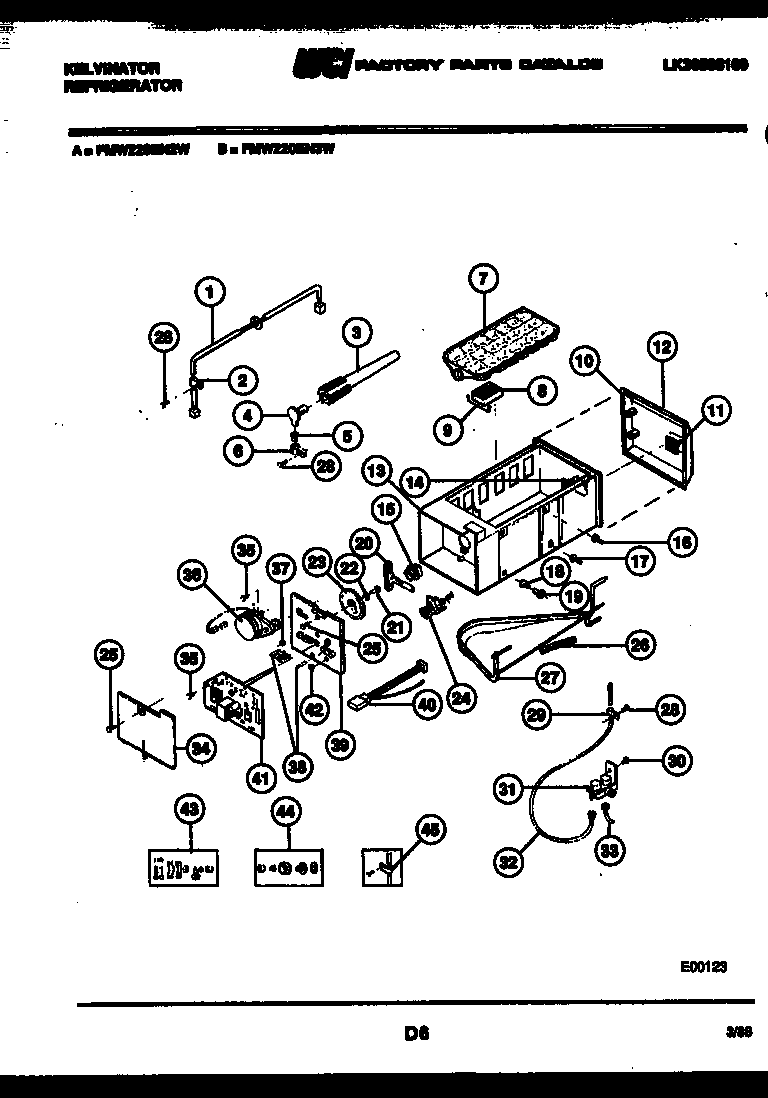

FMW220EN3F 09 – INTERIOR PARTS

Products

Position	Product
1	WIRING HARNESS-ICE & WATER
2	CLAMP-TUBE (NON-ILLUSTRATED)
3	TUBE-FILLER EXTENSION
4	215456100 Frigidaire Refrigerator Water Inlet Tube
5	WCI G154156
6	5303001193 Frigidaire Refrigerator Clamp
7	WCI G182507
8	WCI G174479
9	RETAINER, INSULATOR
10	WCI 3017384
11	WCI 3017383
12	WCI 3017432
13	WCI G187057-01
14	WCI 3017382
15	WCI G182487
16	WCI 3017391
17	WCI G182506
18	WCI G189712
19	WCI G185464
20	GEAR RACK
21	WCI G174444
22	WASHER-CRANK SHAFT
23	WCI G174484
24	WCI 3017390
25	WCI G185567
26	WCI 3017392
27	WCI 3015044
28	5304455651 Frigidaire Refrigerator Screw
29	240396801 Frigidaire Refrigerator Tube Clamp
30	5308000039 Frigidaire Refrigerator Screw
31	WCI G189174
33	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
34	COVER AND LEVER ASSEMBLY
35	WCI G185562
36	MOTOR-ICE MAKER
37	NUT-HEX
38	FOLLOWER, CAM
39	PLATE
40	WCI G182859
41	PC BOARD
42	CLIP
43	WCI G99428
44	WCI G159415
45	5304455846 Frigidaire Refrigerator Clamp
