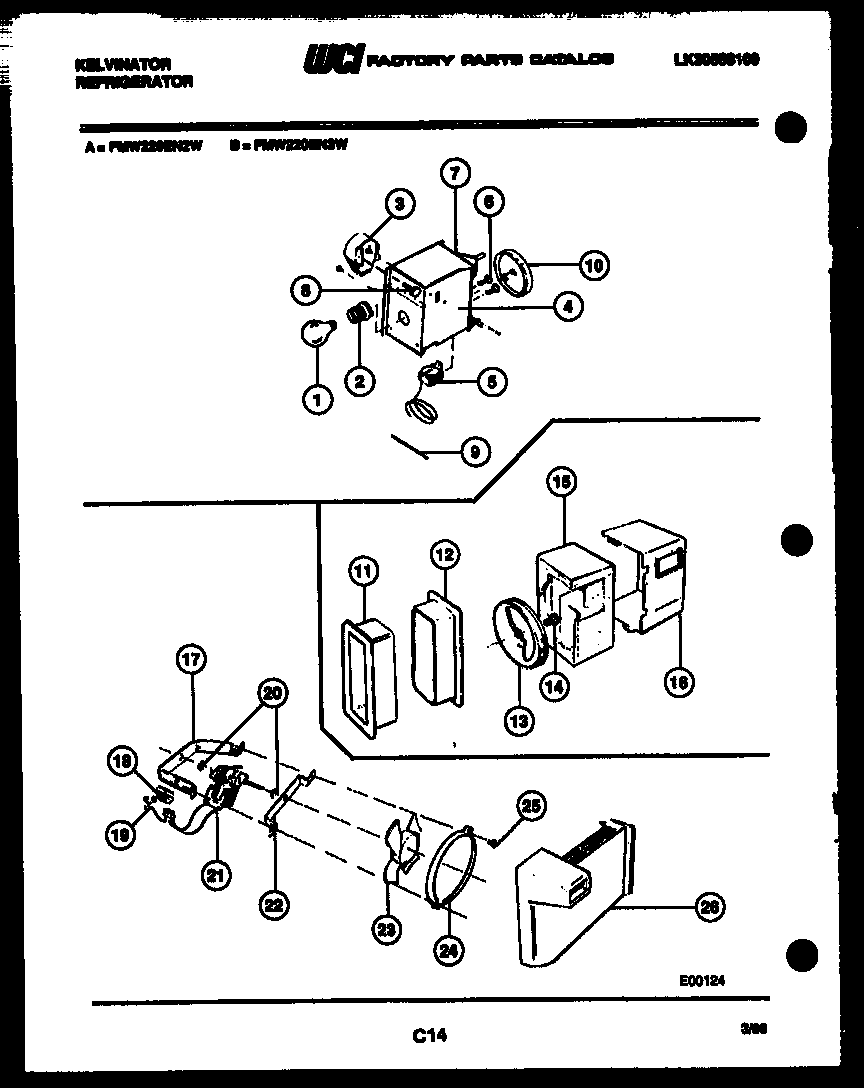

FMW220EN3T 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
*40186WIRING HARNESS-MAIN CONTROL
*40186WCI G162703
*40185FOAM TAPE-COVER
1316538904 Frigidaire Oven Lamp Light
2SOCKET LIGHT
3215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
45304455649 Frigidaire Refrigerator Screw
5WCI G162205-05
6WCI G107080
7AWCI G165434
7WCI G189359
85304455852 Frigidaire Refrigerator Screw
9TUBE
10WCI G164906-01
11WCI G166802
12WCI G166803
12AWCI G167582
13KNOB, DAMPER CONT.
14WCI G185373
15WCI G164575
16WCI G164523
17WCI G185303
18WCI G164571
195304455651 Frigidaire Refrigerator Screw
20G187559 Frigidaire Refrigerator Bushing
215300158289 Frigidaire Evaporator Fan Motor
22WCI G185302
235308000010 Frigidaire Refrigerator Evaporator Fan Blade
24RING, FAN ORIFICE
255304455650 Frigidaire Refrigerator Screw
26WCI G181917-01
