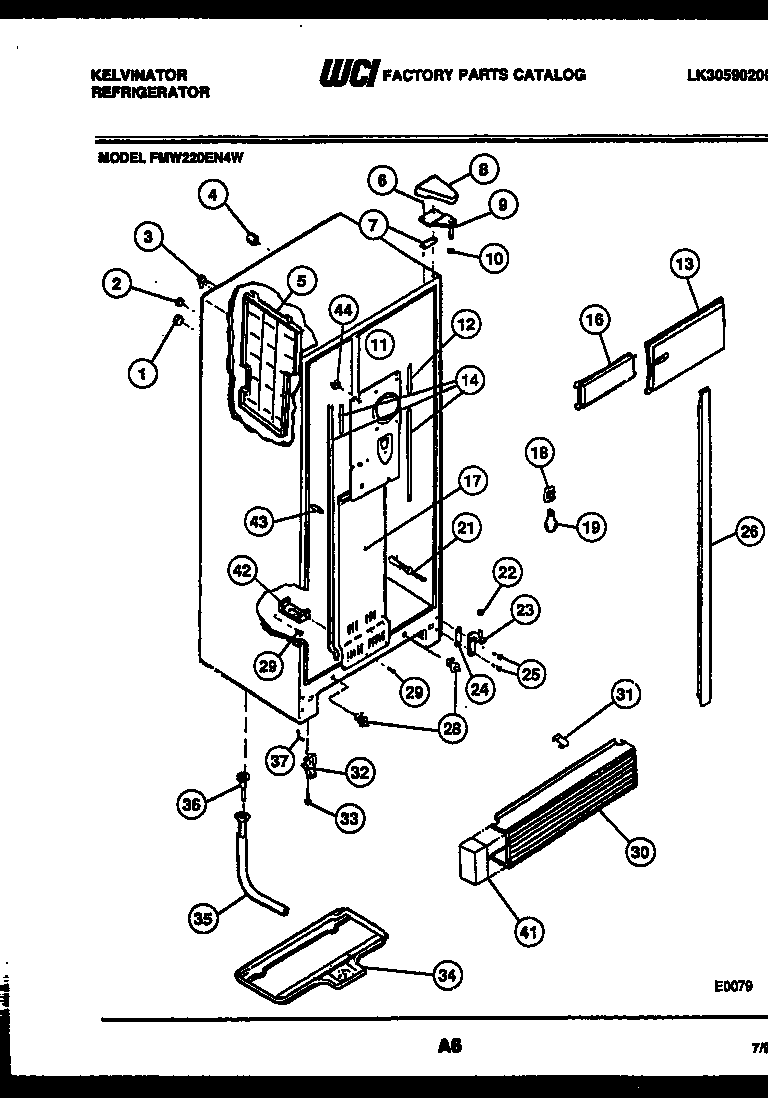

FMW220EN4D 04 – CABINET PARTS

Products

Position	Product
*14332	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
*14332	WCI 5303001288
*14333	WCI 5303001213
*14332	SUPPORT-ICE ACCESS DR
1	WCI 5303001286
2	WCI 5303001287
3	215456100 Frigidaire Refrigerator Water Inlet Tube
4	TUBE-RUBBER
5	DIVIDER-ICEMAKER
6	SCREW (6)
7	SHIM – UPPER HINGE
8	COVER-UPPER HINGE, ALMOND
9A	WCI 5303001062
9	WCI 5308012934
10	WCI 5308000186
11A	5303208309 Frigidaire Refrigerator Plug Hole
11	COVER-COIL UPPER
11B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
12	WCI 5303001219
13	WCI 3016878
14	WCI 5303001233
16	WCI G182527-01
17	COVER-COIL LOWER
18A	BOX, LIGHT
18	218906802 Frigidaire Light Lamp Socket
19	316538904 Frigidaire Oven Lamp Light
21	DAMPER, MEAT KEEPER
22	WASHER, .28 X .62 X .19, NYLON
23A	HINGE-BOTTOM LS
23B	WCI 5303001273
23	HINGE-BOTTOM
24A	WCI 5308000013
24	SHIM-BTM HINGE (3)
24B	WCI 5300077210
25	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
26A	WCI 5303001281
26A	WCI 5300169100
26	WCI 5303916448
28	5303289051 Frigidaire Refrigerator Light Switch
29	5304455650 Frigidaire Refrigerator Screw
30	WCI 5317459709
31	CLIP, GRILLE (2)
32	ROLLER-FRONT (2)
33	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
33A	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
34	WCI 5303001026
35	WCI 5303209723
36	WCI 5308000853
37	WCI 5308010289
37A	NUT, 7/16 X 20, NYLON
41	COVER-HINGE
41B	PUSH NUT-SCREW
42A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
42	WCI 5308000738
42B	WCI 5303001230
43	WCI 5303001250
44	SUPPORT-COIL COVER
