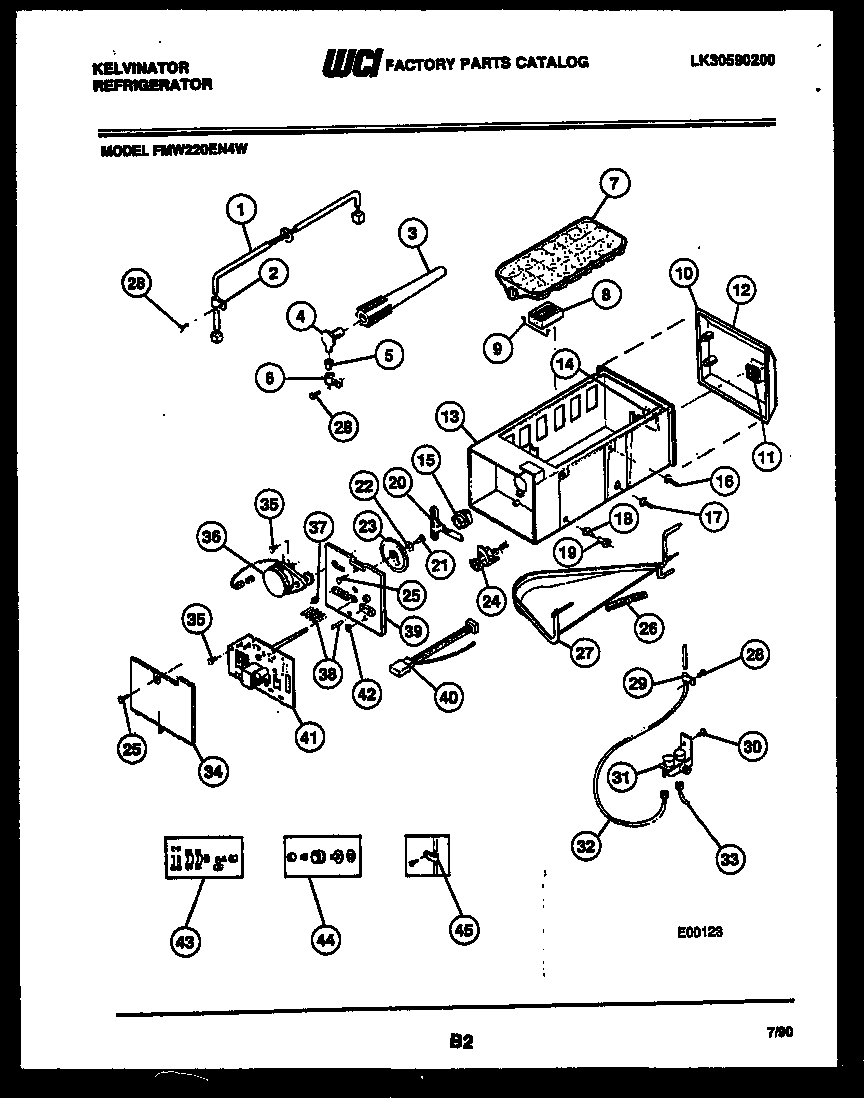

FMW220EN4D 09 – ICE MAKER AND ICE MAKER INSTALLATIO

Products

Position	Product
1	WIRING HARNESS – ICE & WATER
2	CLAMP-TUBE
3	WCI 5308015765
4	215456100 Frigidaire Refrigerator Water Inlet Tube
5	WCI 5303001191
6	5303001193 Frigidaire Refrigerator Clamp
7	WCI 5308015579
8	WCI 5303001141
9	WCI 5301138379
10	WCI 5303017384
11	WCI 5303017383
12	WCI 3017452
13	WCI 5308015618
14	WCI 5303017382
15	WCI 5308015576
16	WCI 5303017391
17	WCI 5300182506
18	WCI 5303017717
19	WCI 5300185464
20	WCI 5308015571
21	WCI 5303001119
22	WCI 5303001117
23	WCI 5301124984
24	WCI 5303017390
25	SCREW (4)
26	WCI 5303017392
27	WCI 5303015044
28	5304455651 Frigidaire Refrigerator Screw
29	5308000133 Frigidaire Refrigerator Clamp
30	5308000039 Frigidaire Refrigerator Screw
31	WATER VALVE SOLENOID
33	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
34	COVER & LEVER ASSY
35	WCI 5308015609
36	WCI 5301124982
37	NUT – HEX 10-32 LH
38	WCI 5308015569
39	WCI 5308015562
40	WCI 5308015592
41	PRINTED CIRCUIT BOARD
42	RETAINING RING
43	WCI 5308000247
44	ADAPTER-WATER SPLY
45	5304455846 Frigidaire Refrigerator Clamp
