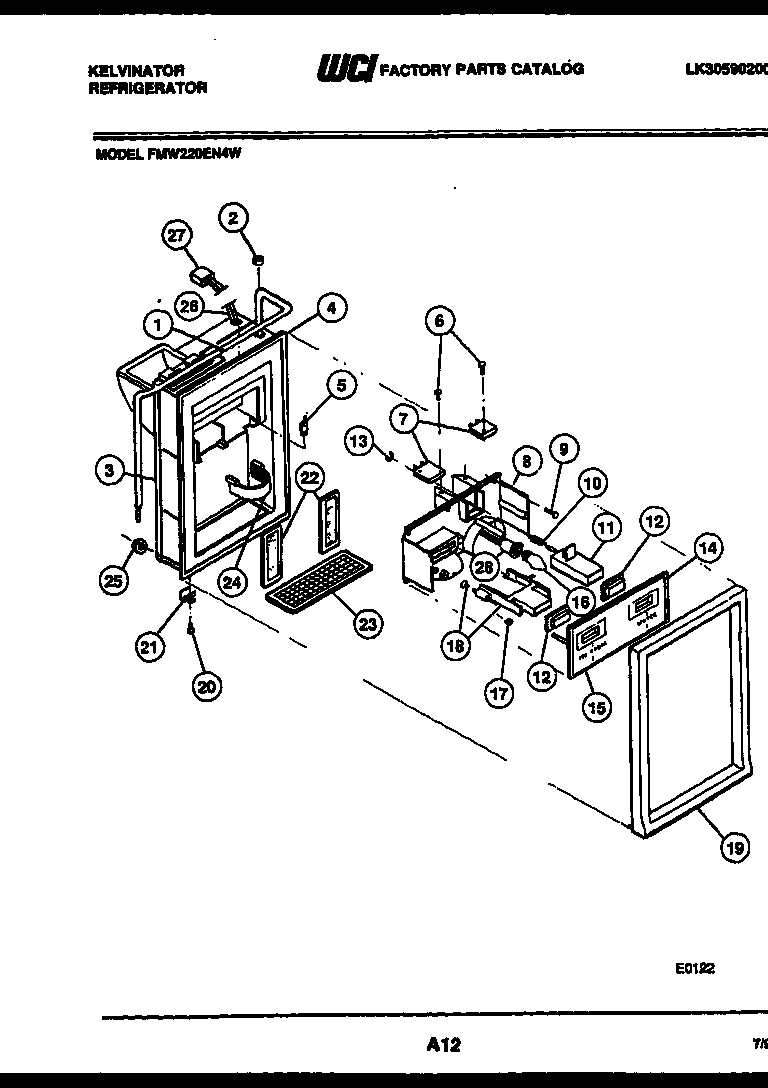

FMW220EN4F 07 – ICE DOOR, DISPENSER AND WATER TANKS – Aparts

FMW220EN4F 07 – ICE DOOR, DISPENSER AND WATER TANKS

Products

Position	Product
*14351	WCI 5303001074
*14351	WCI 5318653301
1	TUBE-WATER INLET & PILOT ASSY
2	WCI 5303001066
3	WCI 5308015588
4	WCI G188308-03
5	WCI 5308010326
6	SCREW (4)
7	WCI 5303001078
8	PLATE-SWITCH MTG
9	SCREW (4)
10	SPRING-WATER ACTUATOR
11	WCI 5303001077
12	BUTTON-ICE
13	WCI 5302832214
14	WCI 3015128
15	FRONT PANEL
16	WCI 5304506475
17	WCI 5303001081
18	ACTUATOR & CUP ASSY-ICE
19	WCI 5318251802
21	WCI 5300179966
22	PAD-FILL (2)
23	WCI 5303015823
24	WCI 5303205864
25	NUT, SELF-THREADING, 1/8
26	WCI 5303001082
27	PLUG-HARNESS BOTTOM
28	SOCKET-LIGHT BULB
