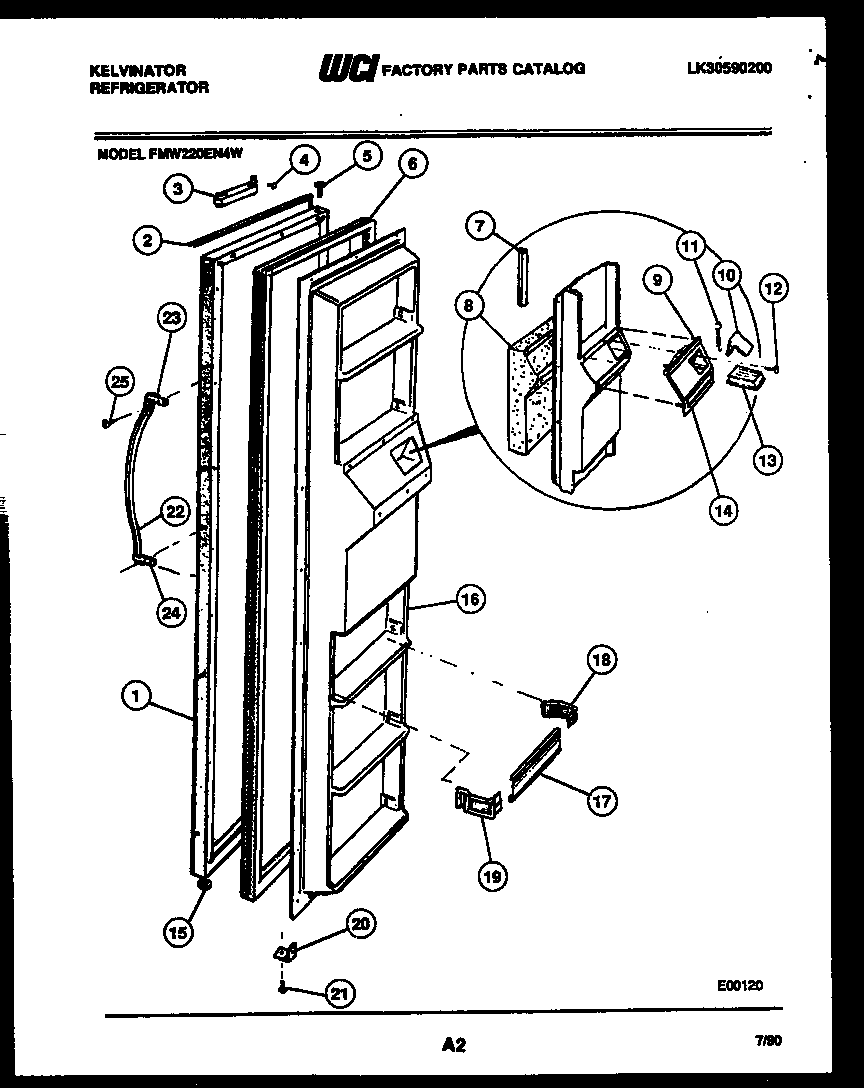

FMW220EN4W 02 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI 5300190072
1A	WCI 5315230801
2	WCI G189468-09
3	WCI 5303200272
4	WCI 3001020
5	WCI 5303001022
6	WCI 5303200474
7	WCI 5303001046
8	WCI 5308015556
9	WCI 5303001048
10	WCI 5303205848
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI 5303017430
14	TRIM COVER-DOOR PANEL
14A	NUT, SELF-THREADING, 1/8
15	BUSHING-LOWER HINGE
16	WCI 3015127
17	WCI 3015077
18	WCI 5303204846
19	WCI 5303204847
20	WCI 5308000790
21	218843801 Frigidaire Refrigerator Screw
22A	INSERT – HANDLE (NON-ILLUSTRATED)
22	HANDLE – DOOR
22B	WCI 530191430
23	HANDLE, END-BOTTOM
24	HANDLE END-TOP
25	WCI 5308011745
