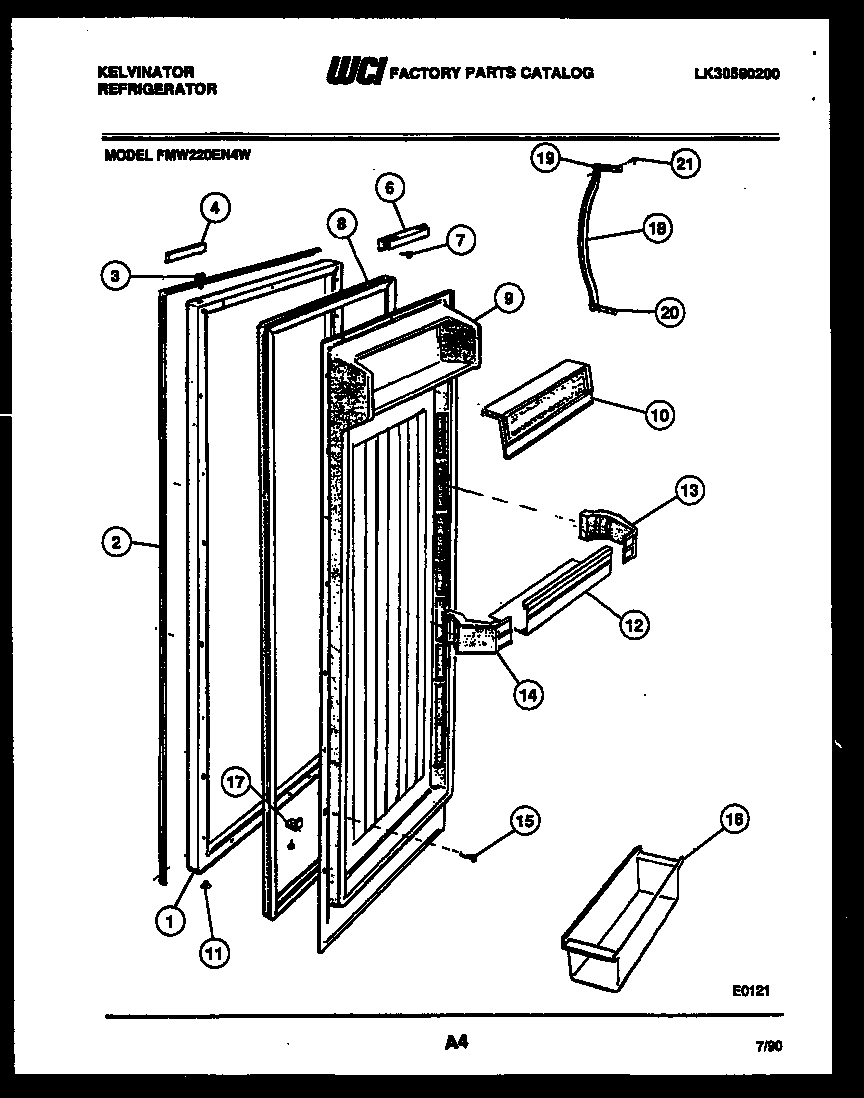

FMW220EN4W 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	WCI 5300189946
1A	WCI 5315230801
2	WCI 5318946822
3	WCI 5303001022
4	NAMEPLATE ASSY
6	WCI 5303200272
7	WCI 3001020
8	GASKET-REFRIG DOOR
9	PANEL-INNER DOOR
10	WCI 3015080
11	BEARING-HINGE
12	WCI 5303206694
13	WCI 5303205806
14	WCI 5303205809
16	WCI 3015068
17A	218843801 Frigidaire Refrigerator Screw
17	WCI 5308000790
18A	INSERT – HANDLE (NON-ILLUSTRATED)
18	HANDLE – DOOR
18B	SPACER-HANDLE (2) (NON-ILLUSTRATED)
19	HANDLE END-TOP
20	HANDLE, END-BOTTOM
21	WCI 5308011745
