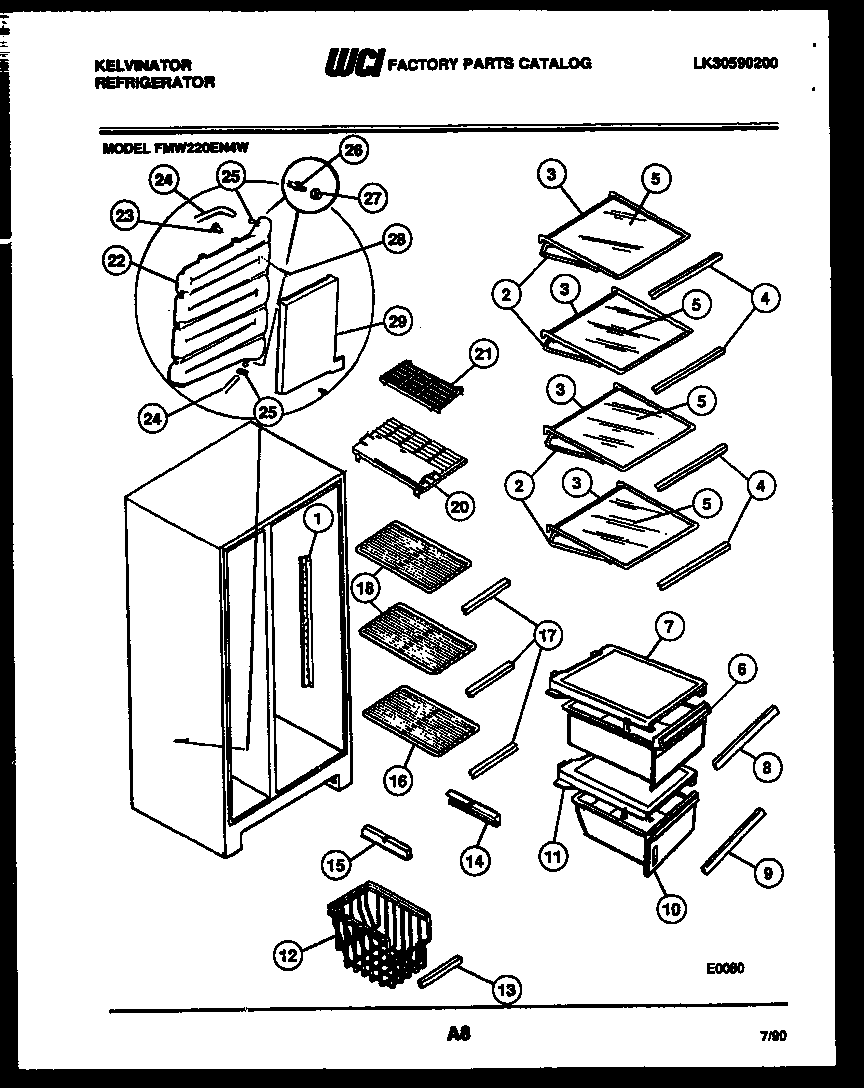

FMW220EN4W 05 – SHELVES AND SUPPORTS

FMW220EN4W 05 – SHELVES AND SUPPORTS

Written by

in

FMW220EN4W 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1A5304455852 Frigidaire Refrigerator Screw
1CHANNEL-RS & LS
2FRAME-SHELF (3)
3TRIM-SHELF REAR (4)
4TRIM-SHELF FRONT (4)
5WCI 5303211389
5ARETAINER-GLASS (3) (NON-ILLUSTRATED)
6PAN-STORAGE UPPER
7AGASKET-CRISPER COVER
7COVER-CRISPER, MIDDLE
9TRIM-PAN LOWER
10PAN-STORAGE LOWER
11WCI 5308017040
12WCI 3200340
12ASCREW-TRIM MTG. (2) (NON-ILLUSTRATED)
13WCI 3015079
14WCI 5303001098
15WCI 5303001099
16SHELF, FREEZER (2)
17WCI 3016879
18A5304509705 Frigidaire Refrigerator Grommet
18SHELF-FREEZER CTR (3)
20ALABEL-SHELF (NON-ILLUSTRATED)
20WCI 5308015608
21ALABEL-SHELF (NON-ILLUSTRATED)
21WCI 5303017212
22WATER TANK
23SUPPORT-TANK (3)
245308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25WCI 530166705
26CONNECTOR – TUBE
27WCI 5308015613
28131420300 Frigidaire Screw
29WCI 5308010322
