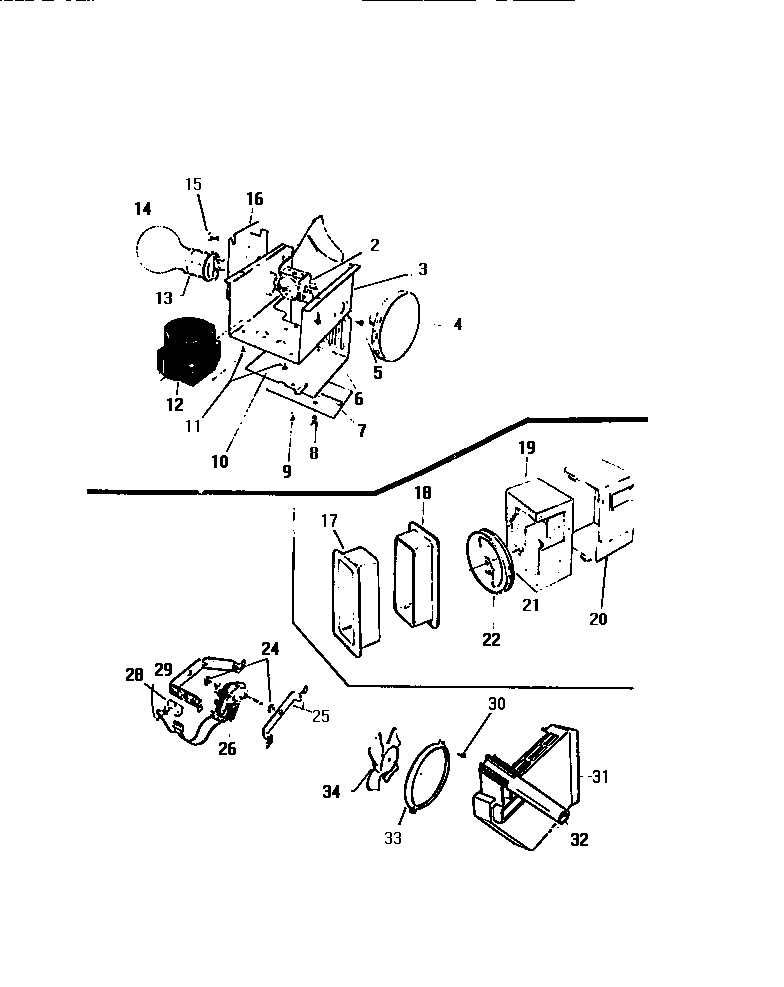

FMW240AN5D 06 – CONTROLS & FAN

Products

Position	Product
*84805	WCI G162703
*84780	TUBE
2	CONTROL
3	WCI G164788
4	WCI G164906-01
5	WCI G107080
6	5304455852 Frigidaire Refrigerator Screw
7	WCI G166068
10	COVER CONT. BRACKET
11	5304455649 Frigidaire Refrigerator Screw
12	215846604 Frigidaire Refrigerator Defrost Timer
13	WCI G157160
14	316538904 Frigidaire Oven Lamp Light
15	WCI G165545
16	WCI G165543
17	WCI G166802
18	WCI G166803
19	WCI G164575
20A	5304455650 Frigidaire Refrigerator Screw
20	WCI G164523
21	WCI G185373
22	KNOB, DAMPER CONT.
24	G187559 Frigidaire Refrigerator Bushing
25	BRACKET, FRONT MOTOR MOUNTING
26	5300158289 Frigidaire Evaporator Fan Motor
27	5304455651 Frigidaire Refrigerator Screw
28	WCI G164571
29	BRACKET, REAR MOTOR MOUNTING
30	131420300 Frigidaire Screw
31	WCI G187033-01
31A	FOAM TAPE-COVER
32	TUBE-FILLER EXTENSION
33A	NUT, ORIFICE (2)
33	RING, FAN ORIFICE
33B	WCI G170839
34	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
